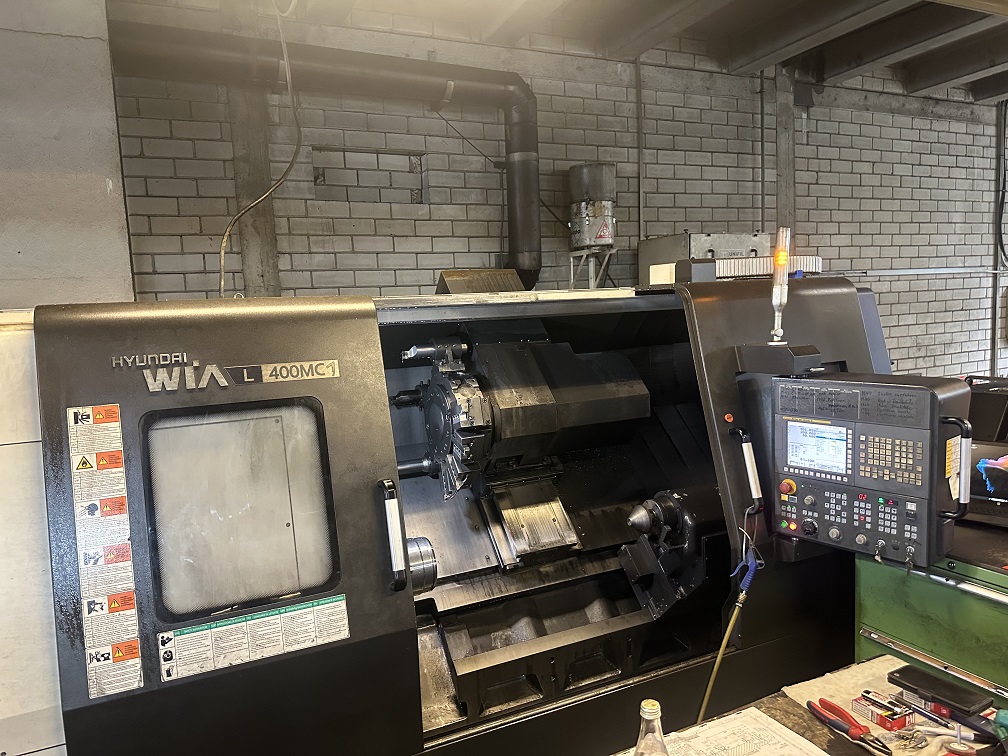

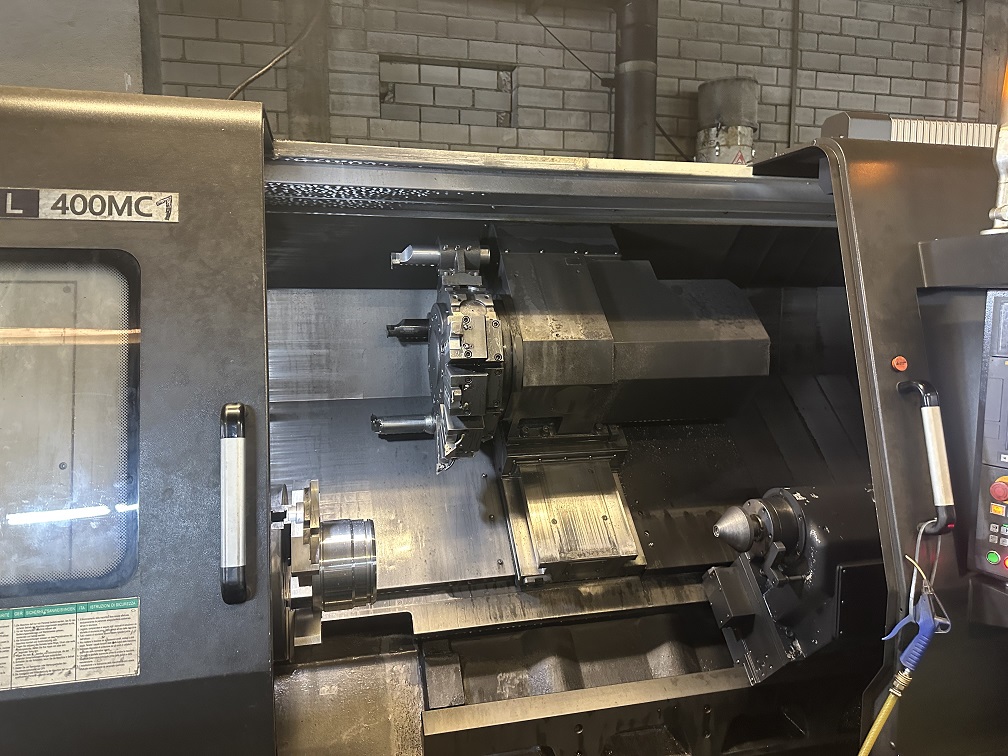

HYUNDAI WIA L400MC - CNC Törner

Construction year 2018

Reference number
24122

Year of construction
2018

Control system
Fanuc 32i-Model B – manual guide i

Max. Turning Diameter
530 mm

Max. Turning Length
500 mm

Travel distances
X-axis: 320 mm
Z-axis: 1,200 mm

Main spindle
Drive power: 37/30 kW
Torque: 3,073/2,490 Nm
Max. speed: 2,000 rpm
Max. bar capacity: 117 mm Bar capacity: 117 mm

Tool turret
12-position tool turret, BMT75P
12 driven stations
Drive power: 7.5/5.5 kW
max. number of revolutions: 4.000 U/min

further equipment

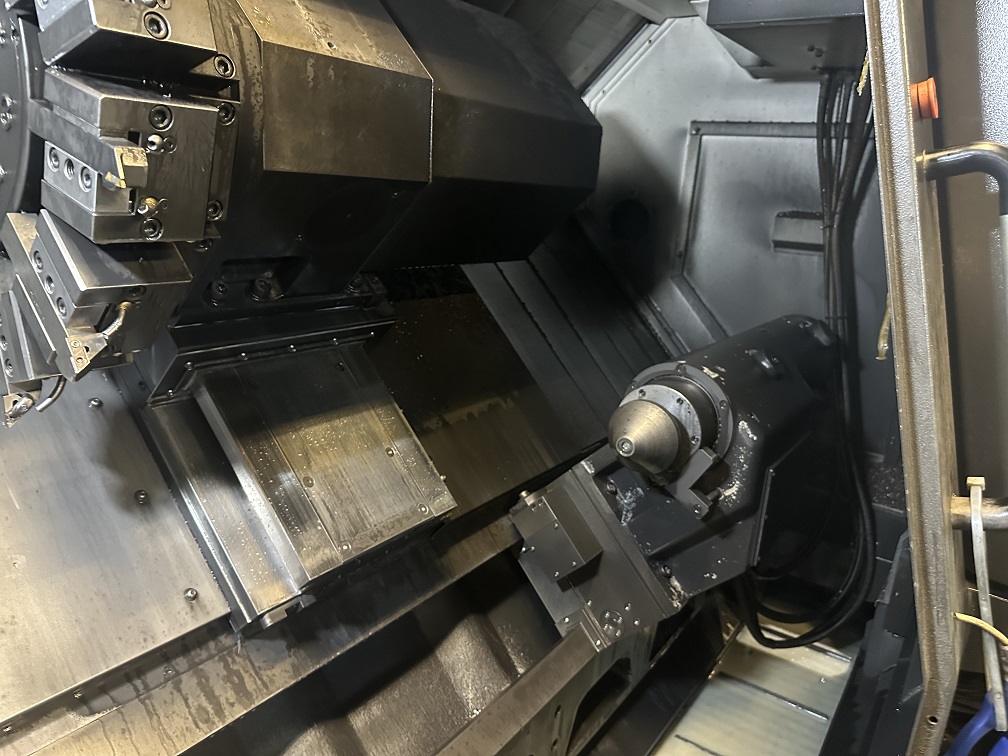

programmable tailstock MK#5
Main spindle with 2-stage gearbox
Tooleye
Swarf Conveyor
High pressure pump, 20 bar

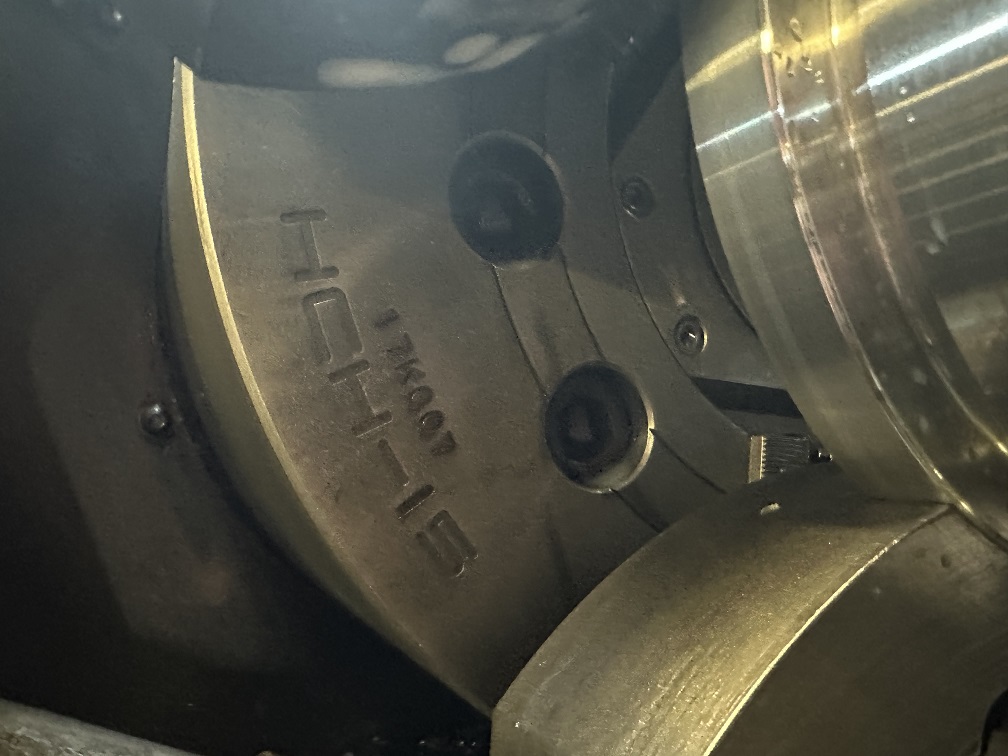

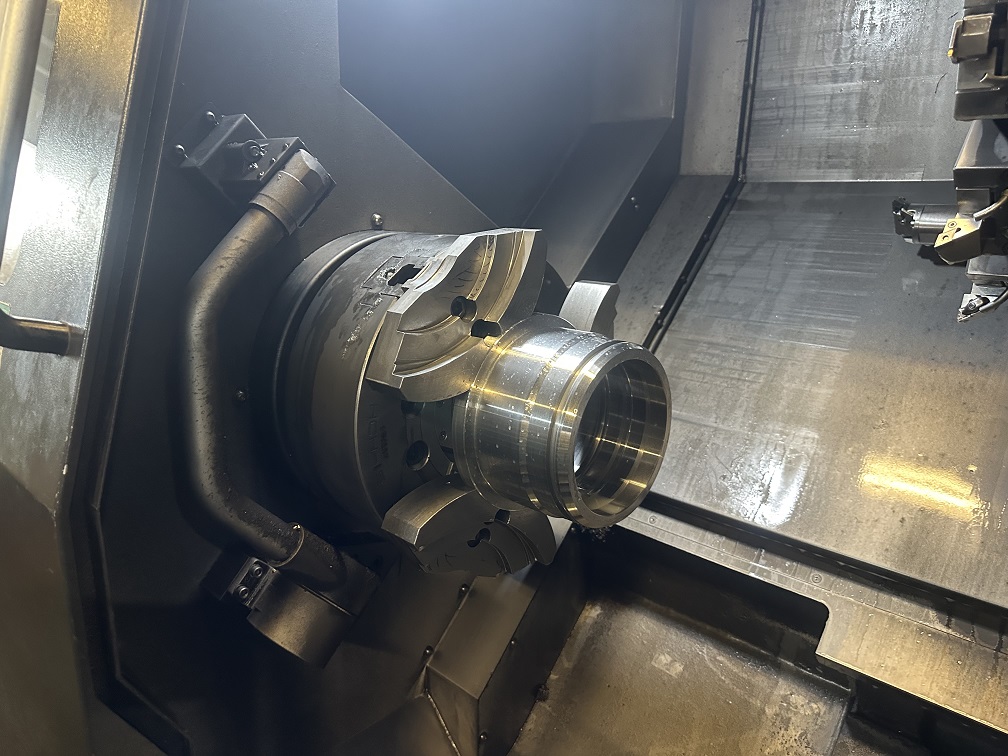

3-jaw chuck diameter 380 mm
Tool breakage monitoring
Program memory extension

Hyundai L400MC CNC lathe used – powerful & reliable

Discover the proven Hyundai L400MC – a robust and reliable CNC lathe that has been specially developed for precise and demanding machining tasks. Ideal for companies that rely on stability, durability and industrial performance.

The Hyundai L400MC impresses with its solid construction and offers maximum accuracy even with heavy workpieces and long machining cycles. This machine is the perfect choice for demanding applications in series or one-off production.
