MAZAK INTEGREX i 300 ST - CNC Törner

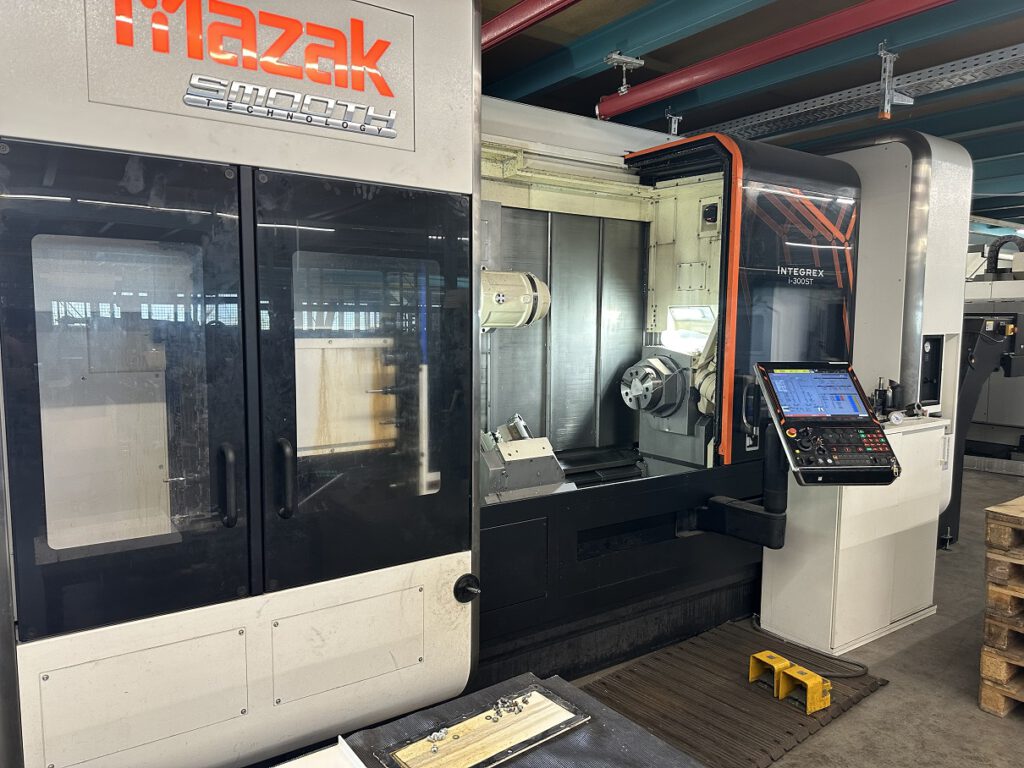

MAZAK INTEGREX i 300 ST

CNC lathe, CNC turning and milling center, Mazak

mfg. year 2016

Reference number
24117

Year of construction
2016

control
Mazatrol Smooth X
5-axis simultaneous

Max. Rotary diameter
658 mm

Max. Turning Length
1.519 mm

movements
X-axis 615 mm
Y-axis: 250 mm
Z-axis: 1.585 mm
W-axis: 1.574 mm
B-axis: -30 bis 210°

rapids
X/Y/Z/W 50/40/50/30 m/min

Main spindle
Power output: 30 kW
max. spindle speed: 4.000 rpm
C-axis
max. bar capacity: 80 mm

sub spindle
power output: 26 kW
max. spindle speed 4.000 rpm
C-axis

milling spindle
power output: 22 kW
max. spindle speed: 12.000 rpm
B-axis: 0.0001°
Capto C6

tool magazine / ATC
72 tool pockets
max. tool diameter: 90/125 mm
max. tool length: 400 mm
max. Tool weight: 12 kg

additional equipment

Knoll chip conveyor
Knoll coolant system with paper belt filter
preparation 70 bar
70 bar high pressure pump, 7 pressure levels
airblow upper turret
Milling spindle synchronized tapping
G00 slope constant
Turning/milling function for Mazatrol
5-axis package for SmoothX
-EIA/ISO 5-axis simultaneous
-F) Tool Tip Comtrol 5-axis-simultaneous
-Spline-Fineinterpolation
-5-axis Spline Interpolation
sub spindle C-axis incl. synchronisation C1+C2

Dimensions / Weight
Dimensions LxWxH:
4,910 x 2,800 x 2,720 mm
Weight: 16,900 kg

General machine options

B-axis, 0,0001°
C-axis main spindle 0,0001°
Spindle positioning, counter spindle without C-axis, input accuracy 0.001°
Absolute Positioning-System (Linear-Aaxis)
Workspace lighting
Operator door with locking switch
CE-mark
Dual footswitches, one for the main spindle and one for the counter spindle
Opening and closing of the chuck via separate switches
hydraulic pressure locking
Fully panelled workspace
Automatic opening/closing of the chuck jaws for main and sub spindle
Chuck condition feedback for main and counter spindles
Chuck condition feedback via sensors
Tooleye for upper and lower turret
Pitch error correction input X, Y, Z”
Standard set of toolholders for lower turret

Mazak Integrex i 300 ST used for sale. Price on request. Available immediately!
