MAZAK VTC-530-C - CNC Törner

Buy used Mazak VTC-530-C at Törner CNC-Maschinen:

Reference number
24139

mfg. year
2017

control

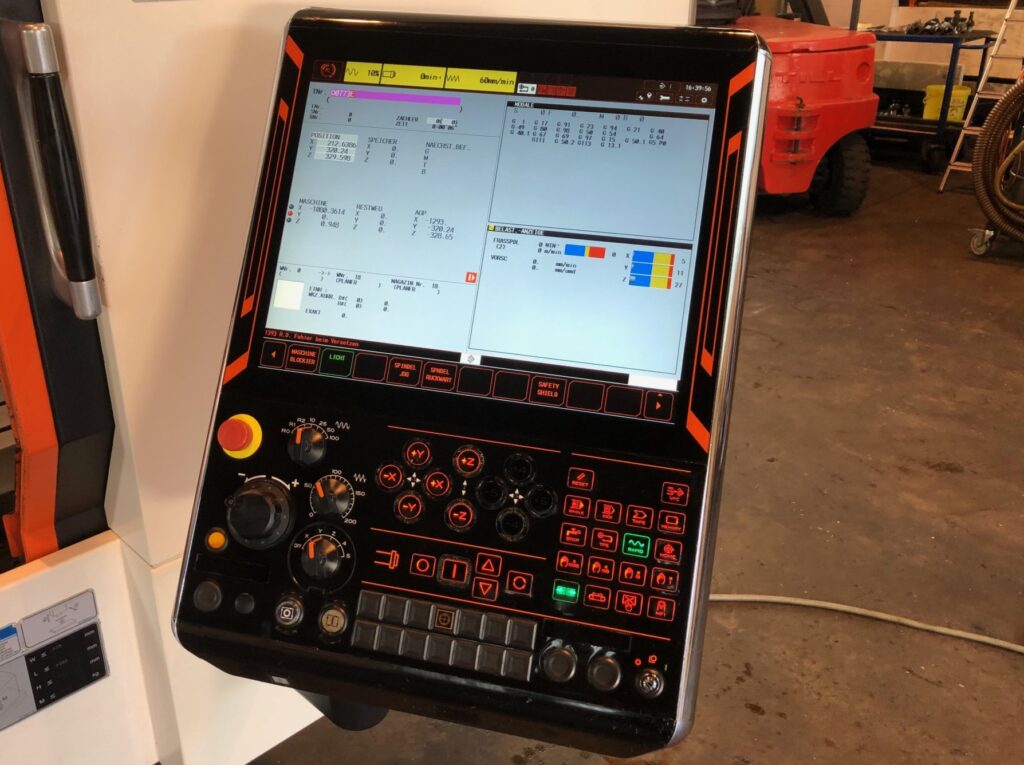

Mazatrol Smooth G

Travel distances
X-axis: 1,740 mm
Y-axis: 530 mm
Z-axis: 510 mm

Clamping surface

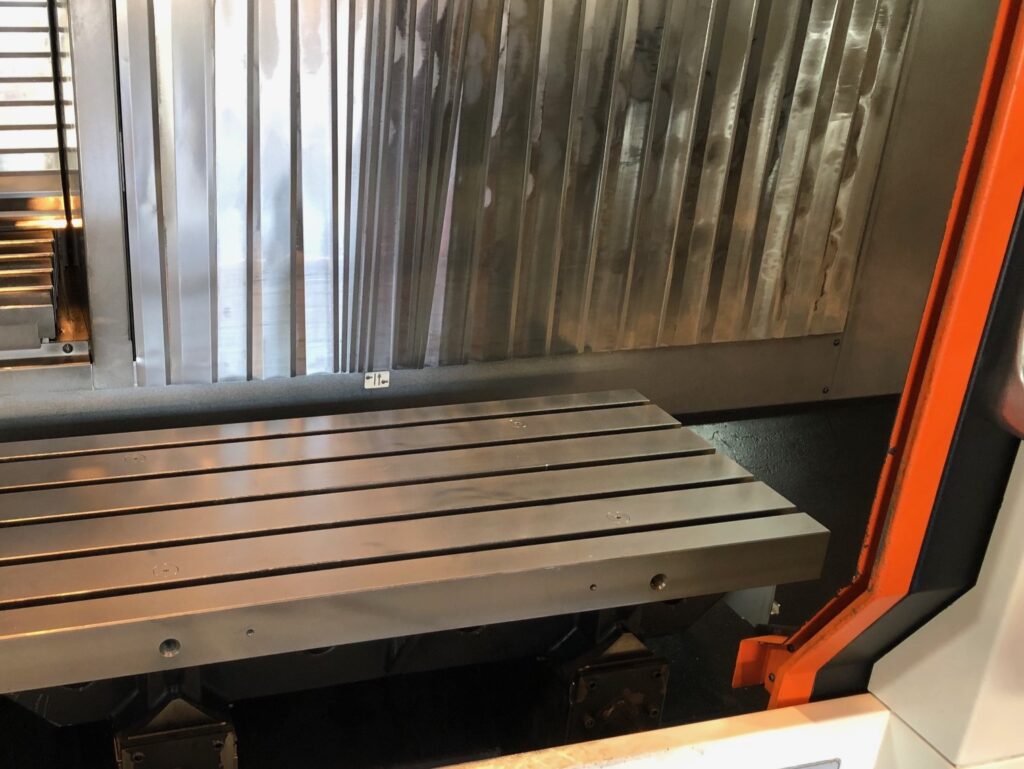

Table size: 2,300 x 530 mm
Max. table load: 1,000 kg

Rapid traverse
42 m/min

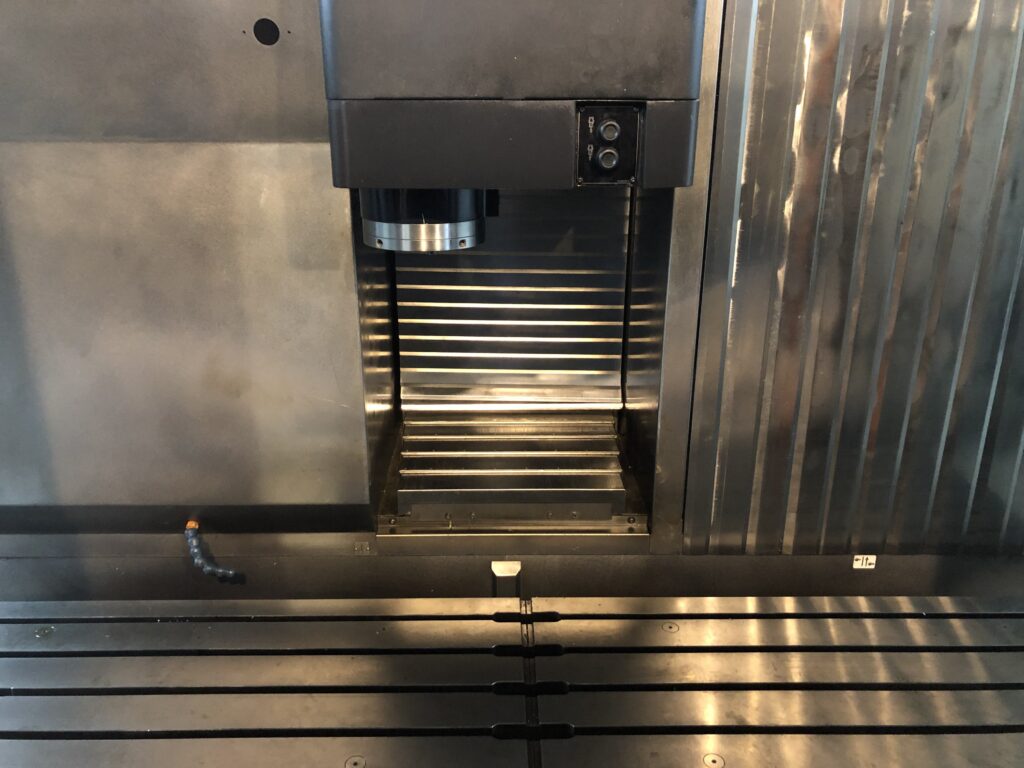

Milling spindle
Drive power: 18.5 kW
max. spindle speed: 12.000 rpm
SK-40 DIN69871

Tool magazine / ATC

Number of tool slots: 30
max. Tool diameter: 80 mm
max. Tool diameter with free additional space: 125 mm
max. Tool length: 350 mm
max. Tool weight: 8kg

further equipment

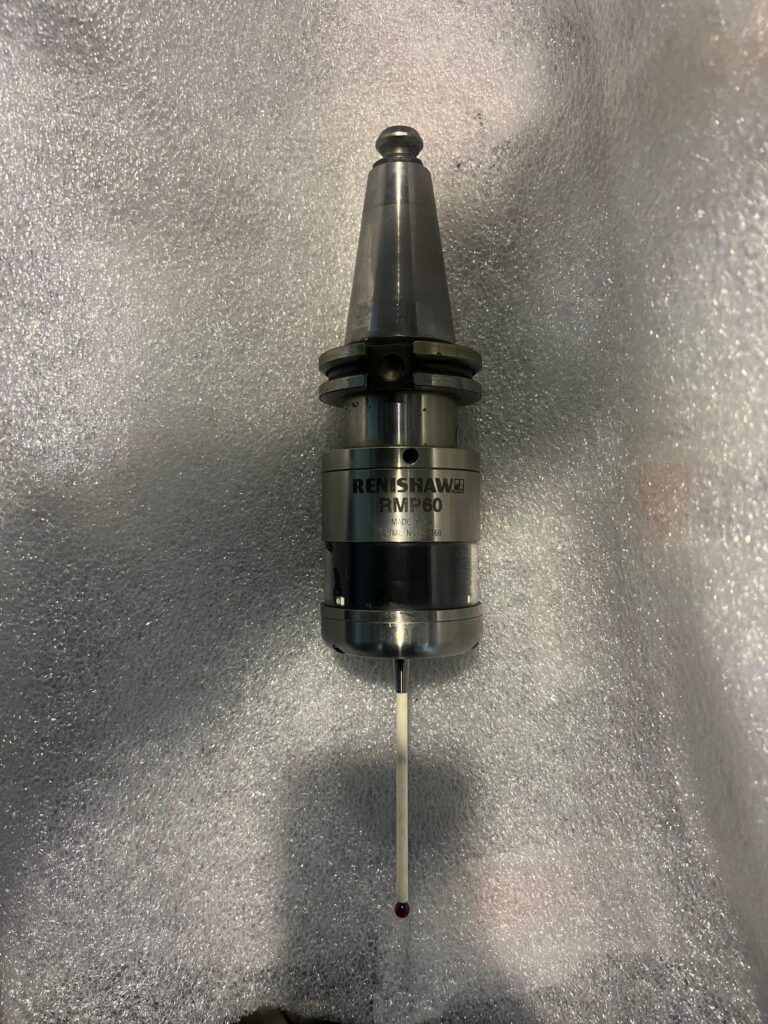

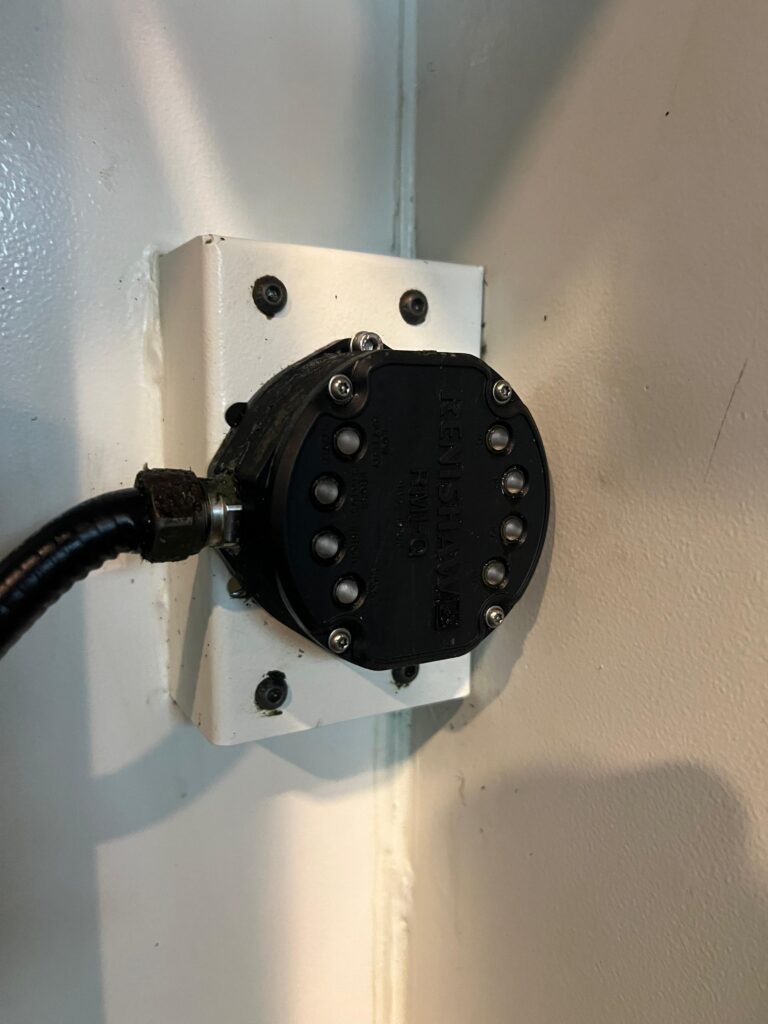

Tool length measurement
Swarf Conveyor
Air and Coolant Blow Through the RH Spindle
high pressure pump 15 bar
Cover rinse
sync. Milltapp
Rapid traverse constant angle of inclination

Dimensions L x W H
4,100×2,800×2,685 mm

Weight
9,800 kg

Machine hours
Switch-on time: approx. 36,000 hours
Pure machining: approx. 11,500 hours

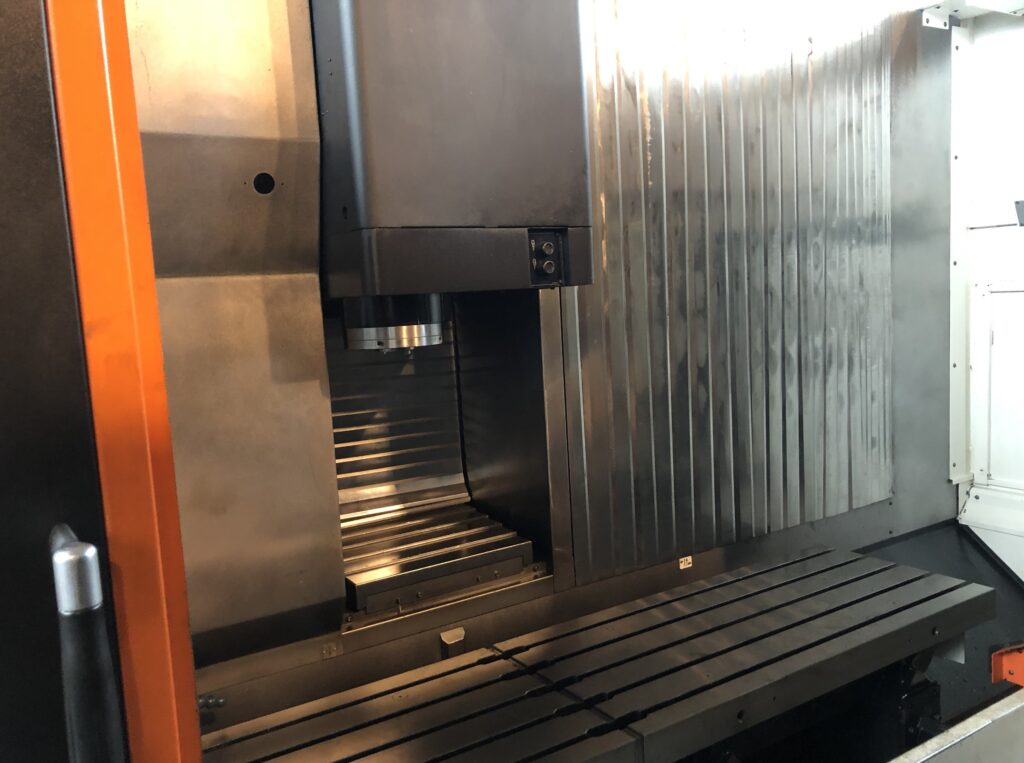

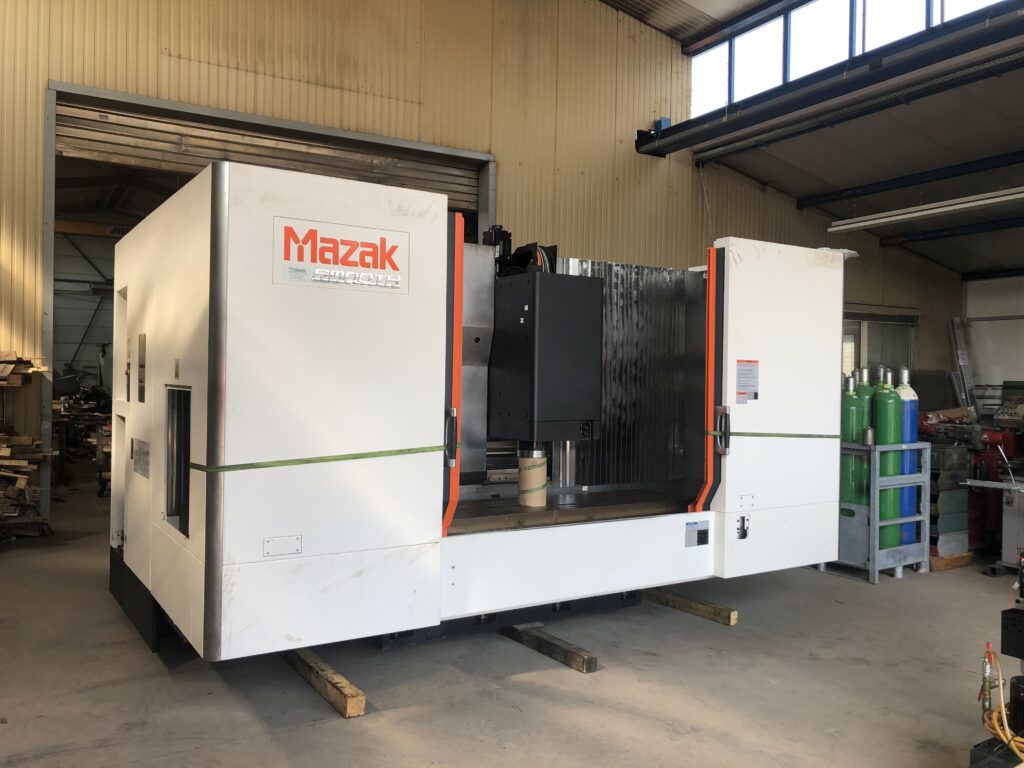

Mazak VTC 530 C used – Your solution for precise and efficient milling

The Mazak VTC 530 C used is a first-class vertical machining center designed for the most demanding manufacturing processes. With modern technology and high reliability, this machine model is ideal for companies that value precision, efficiency and process reliability. The stable design and proven Mazak quality have made the Mazak VTC 530 C a sought-after solution in industrial machining for years.

On request, we can not only provide you with the machine, but also the complete service from a single source: from organizing the delivery and professional commissioning to servicing and maintenance. In this way, we ensure that your Mazak VTC 530 C is integrated into your production quickly, reliably and productively.

Take the opportunity now and secure this high-quality vertical CNC machining center. Simply fill out the contact form and send us your inquiry – we will get back to you promptly with all further information and a suitable offer.
