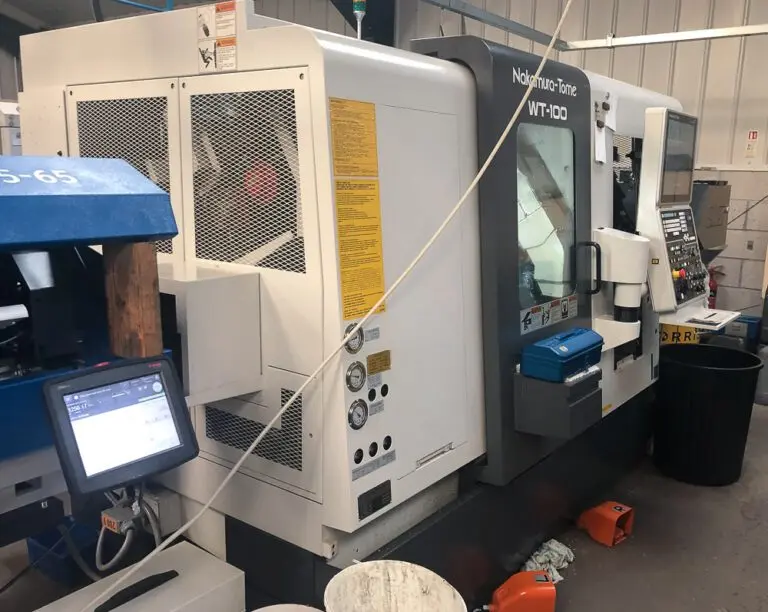

NAKAMURA WT-100MMY

Construction year 2018

Reference Number
23037

Construction year
2018

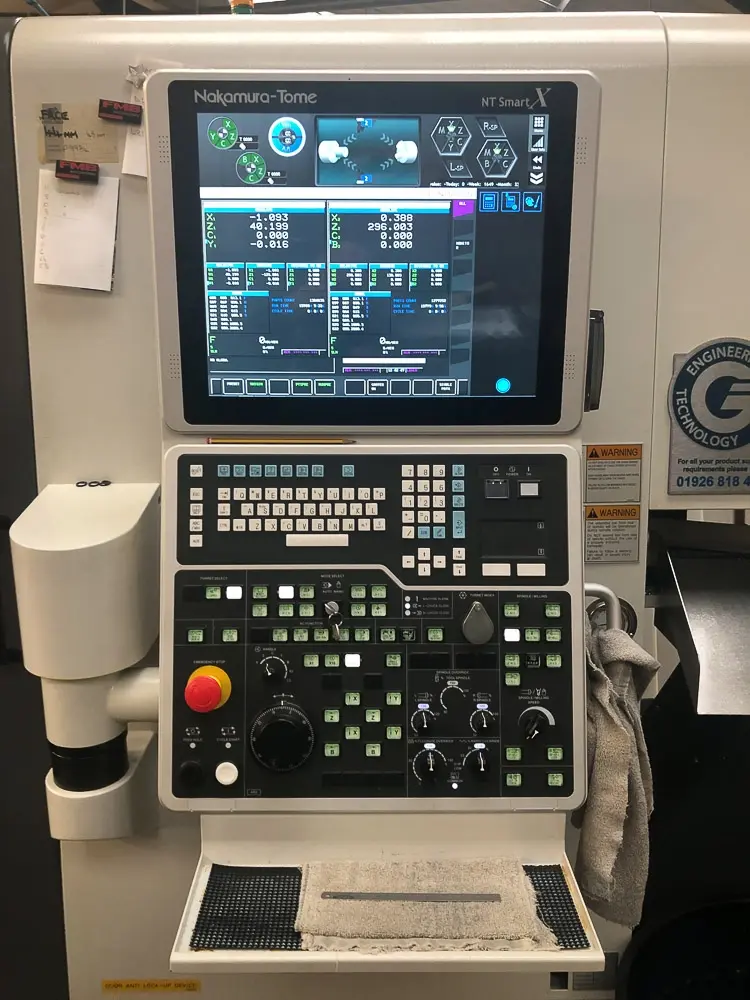

Control
Nakamura-Tome NT SmartX

Travel paths
X1/X2-Axis: 135 m
Y1-Axis: -/+ 31 mm m
Z1/Z2-Axis: 503 mm

Max. Turning/ Swing Diameter
190 mm

Standard turning diameter
170 mm

Max. Stanegn passage
42 mm

Main Spindle
Drive power: 11/7.5 kW
max. Spindle speed 6.000 U/min
Spindle nose A2-5

Counter spindle
Drive power: 11/7.5 kW
max. Spindle speed 6.000 U/min
Spindle nose A2-5

Tool Turret
2 pcs. 12-fold revolver
2 x 24 station index
2 x 12 powered tool positions, 2.2/7.1 kW
max. Speed driven tools 6,000 rpm

More options
