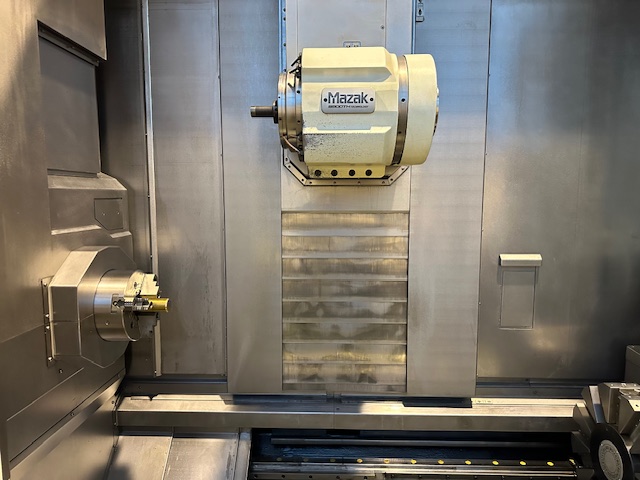

MAZAK QUICK TURN 250 MB + TA20/200

Mazak Quick Turn 250 MB + robot cell - 2019 - Smooth X
Reference Number
22010
Year of Manufacture
2019
Max. turning diameter
380 mm

max. Swing diamter
695 mm
max. turning length
512 mm
main spindle
max. spindle speed: 4.000 rpm
full C-axis
spindle nose: A2-8
tool turret
12 tool stations
12 driven tool stations
rotary tool output: 5,5 kW
max. speed: 5.000 rpm
movements
X-axis: 234 mm
Z-axis: 625 mm
tailstock: 565 mm
rapids X/Z: 30/33 m/min
3-jawchuck
Kitagawa BB-210, Diameter 254 mm
robot cell TA20/200
– Robot payload 20 kg
– Min. workpiece diamter 25 mm
– Max. workpiece diamter 200 mm
– Min. A/F 25 mm
– Max. A/F 170 mm
– Max. stacking height 2 x 350 mm
– Max. stacking weight 350 kg
– Max. combines weight of WP’s with double cycle or Individual weight of WP with single cycle 14 kg
– Automatic switch between double an single cycle depending weights of workpiece
machine weight
5.600 kg
machining hours
Power on: approx. 6.000 h
Cutting time: approx: 1.500 h
Used Mazak Quick Turn 250 MB with robot cell TA20/200 for sale.
Price on request. Delivery in June/July 2022.
