MAZAK INTEGREX i-300 (1500U)
Ny maskin - år 2021
- Referensnummer
- 23031
- år
- ny maskin - år 2021
- styring
- Smooth X
- Max. svarvdiameter
- 658 mm
- Max. svarvlängd
- 1.519 mm
- Rörelse
- X-axel: 615 mm
Y-axel: 250 mm
Z-axel: 1.585 mm
W-axel: 1.574 mm
B-axel: -30°-210°
Snabbtransport X/Y/Z/W: 50/40/50/30 m/min - Huvudspindel
- Spindeleffekt: 30 kW
max. Spindelvarvtal: 4.000 v/min
C-axel
Max stångkapacitet: 80 mm - Fässpindel
- Spindeleffekt: 24 kW
max. Spindelvarvtal: 12.000 v/min
Capto C6 - Verktysmagasin
- 110 positioner
max. Verktygsdiameter: 90/125 mm
max. Verktygslängd: 400 mm
max. Verktygsvikt: 12 kg - utrüstning
- - milling spindle 24 kW (Oil-air-lubrication) (Option MR372)
- Tool magazine for 110 tool HSK-A63 and HSK-T63 (Option AT719)
- NC-tailstock with live center MT5
- Workpiece stop in spindle (B-210A815X) (Option SO052)
- Air at milling spindle (Option CS173)
- Air at tailstock quill (Option TT080)
- Internal cooling ballscrew in Y and Z axis (Option MO553)
- Shower collant (Option CS256)
- Interface Europe 70 bar (Option CS808)
- Signal lamp (Option PL083)
- Automatic door (Option AS321)
- Hyfraulic temperature regulation (Option MO115)
- linear scales for Z-axis of milling spindle (B-axis) (Option SF030)
- linear scales for X and Y axis (Option SF050)
- preparation Mazak Monitoring B Renishaw RMP60 (Option MB267)
- Renishaw NC-4 Tool Laser (Option A12J00001)
- Preparation for Multi & Flashtool System (Option TE810)
- Overload detection (Option AS080)
- Mazak API (Option NO056)
- Smooth Synchr. Mill/Tapp (Option NO066)
- Tool radius compensation – 5 axis (Option NO0123)
- Engraving function (Option NO127)
- Tool cutting point control (Option NO128)
- G00 slope constant (NO0442)
- Cylinder + polar interpolation (NO559)
- Tool length compensation in tool axis direction (NO611)
- 5-axis-package for Smooth X (Option NP326)
- Visiport (Option A12J00011)
- Swarf conveyor Knoll (Option DECV784)
- Knoll coolant system KF400/2300 (Option DECV001)
+70 bar pump, 7 pressure levels
+ 2.300 Liter Tank
+Paper belt filter
- Preparation for mist extractor (Option CS666)

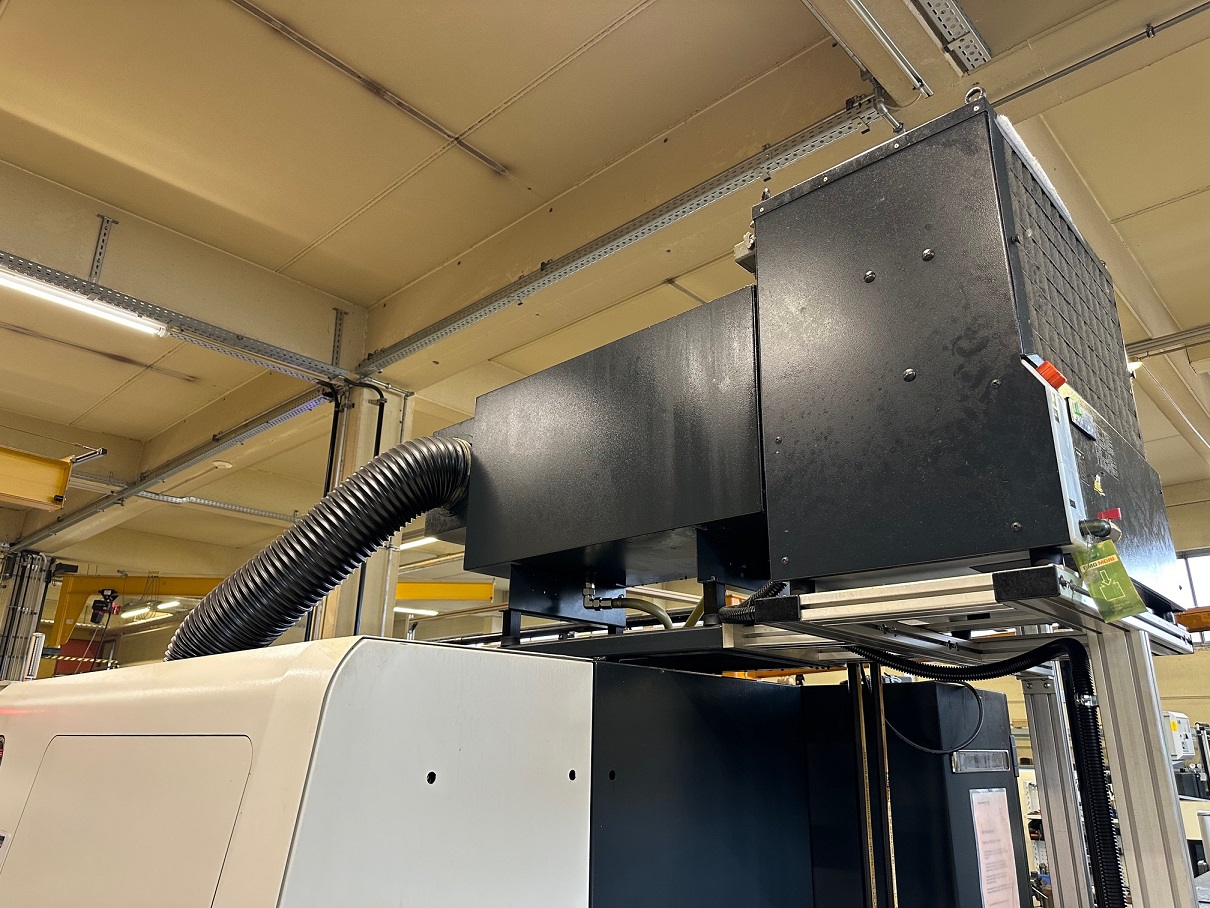

- Mist extractor Losma GX1000 (Option CS626)
- G-Clipper for Losma mist extractor (Option CS691) - tilbehör
- - 40. off HSK63 toolholders
- Big clamping package – Hainbuch
+Centrotex adapter
+Hainbuch collet chuck
+Div. collets
+3-jawchuck , Diameter 315 mm
+A lot more clamping equipment - Ny maskin Mazak Integrex i-300 till salu.
- Pris på förfrågan. Ledig omgående.
