Year of construction
2003
Control

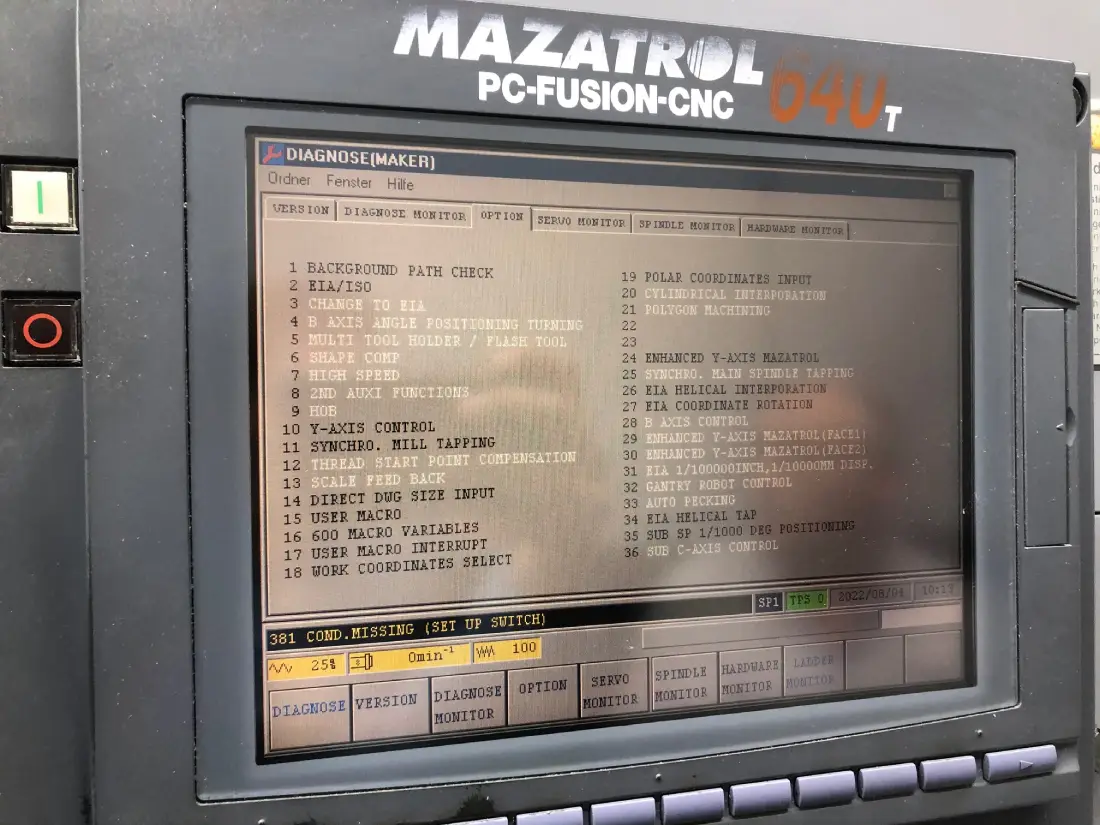

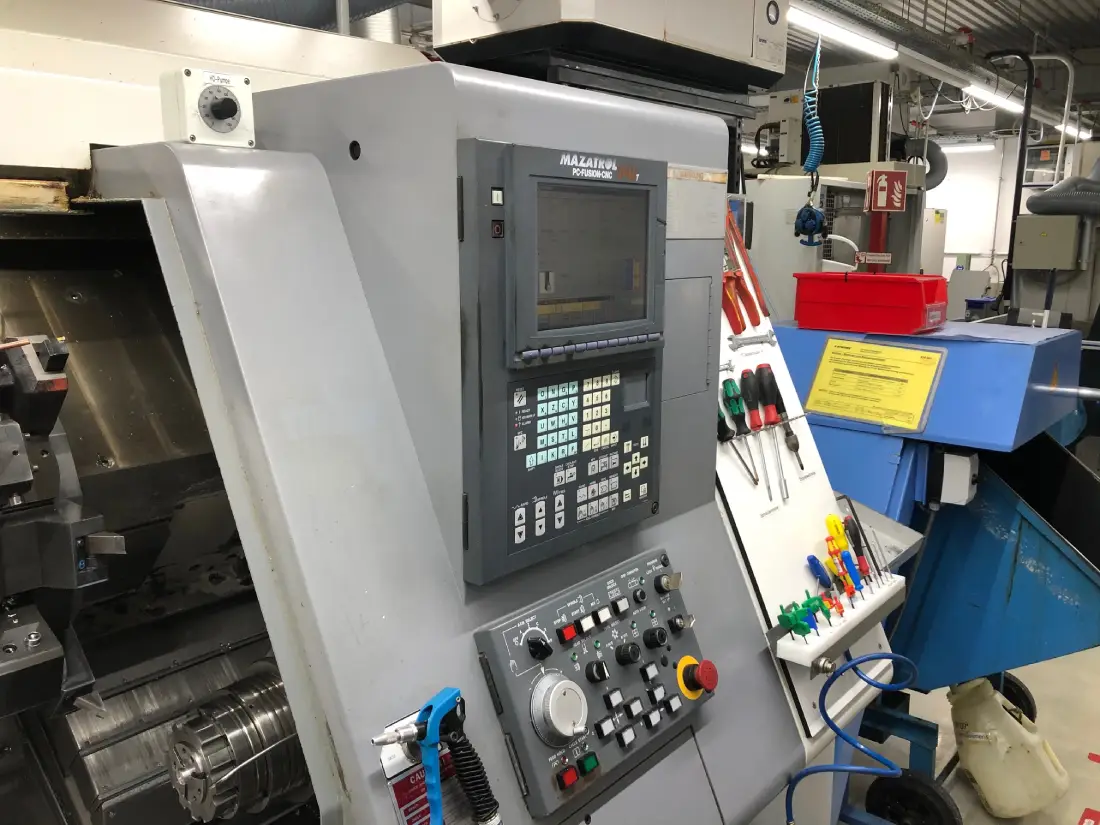

Mazatrol PC Fusion 640 T
Description

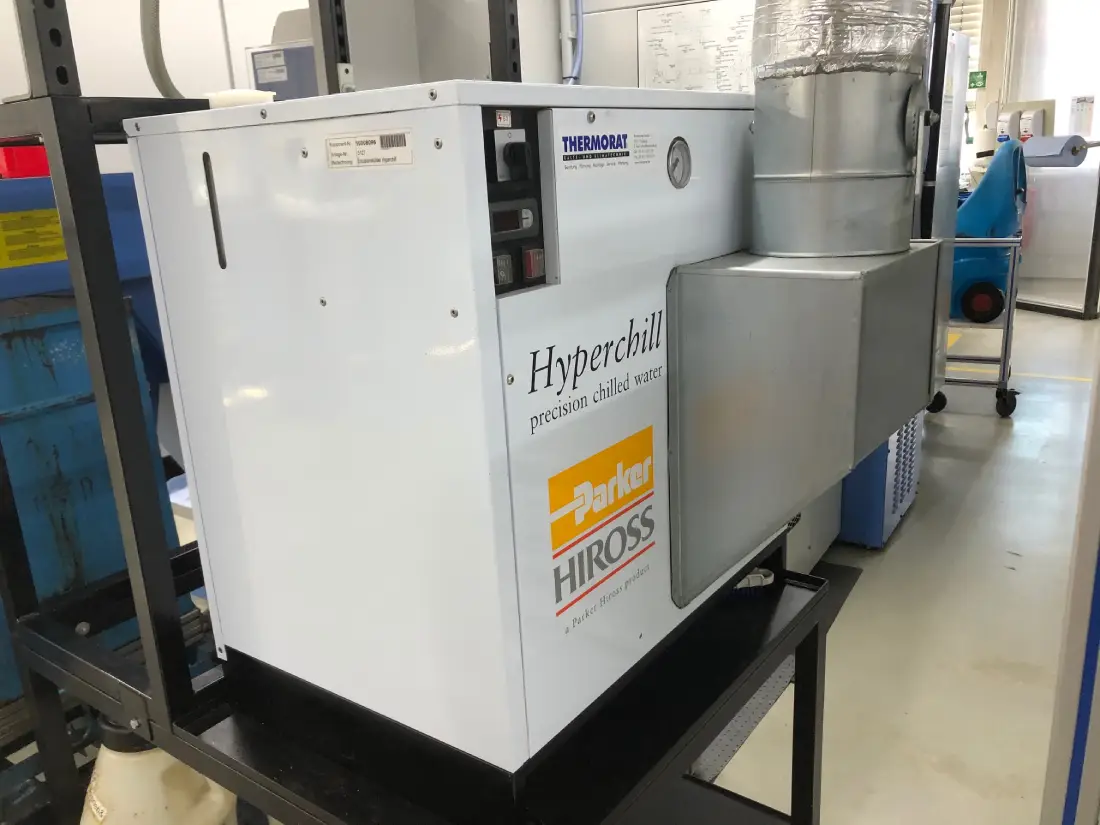

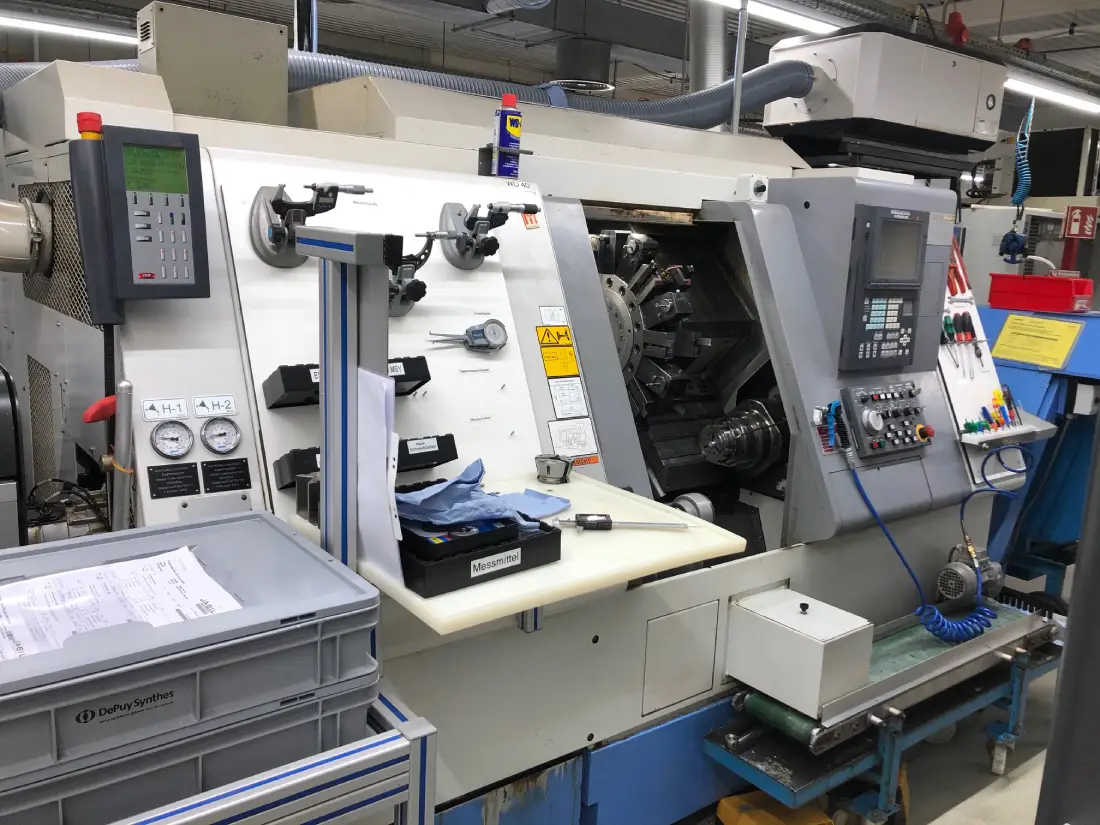

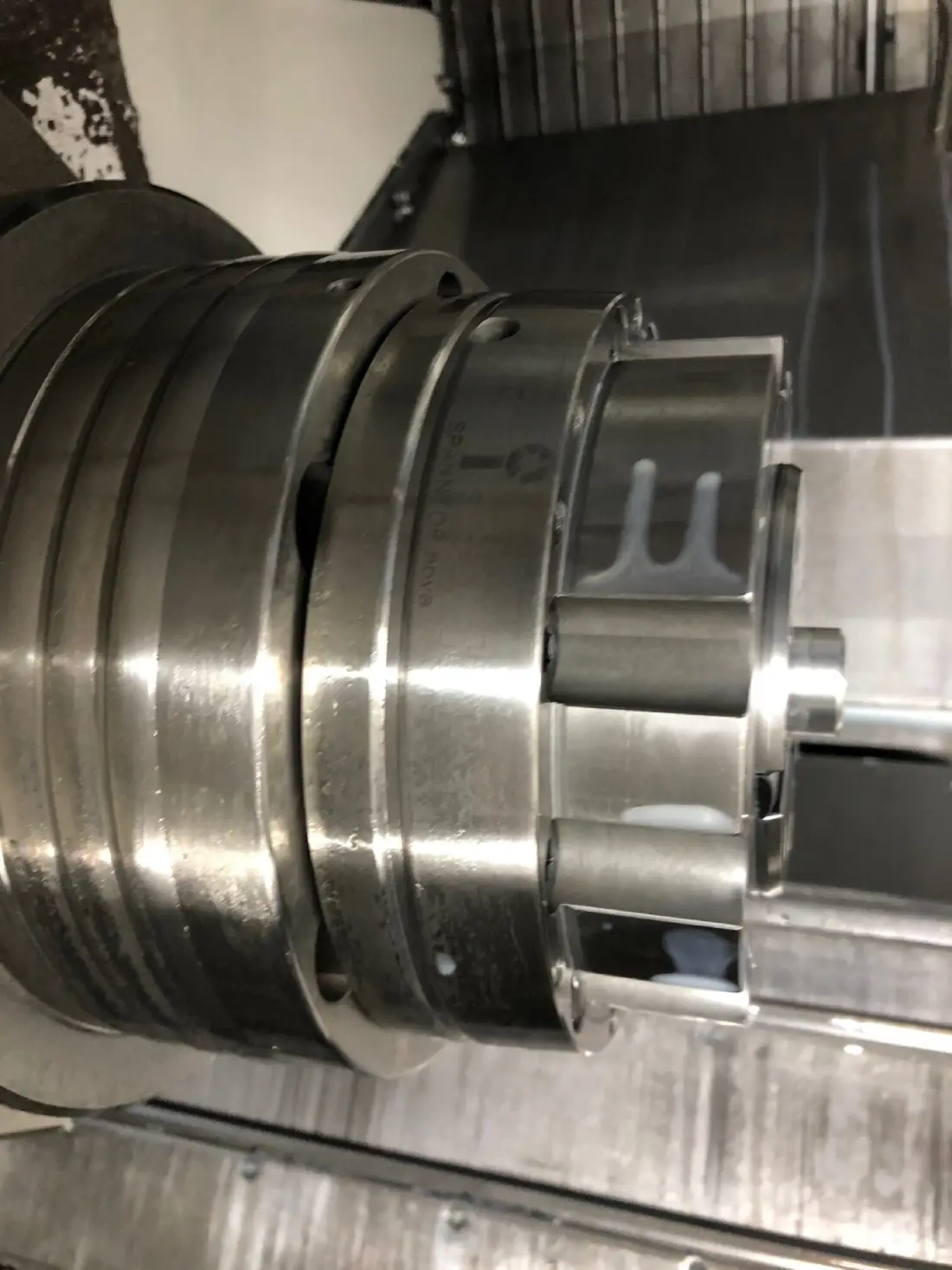

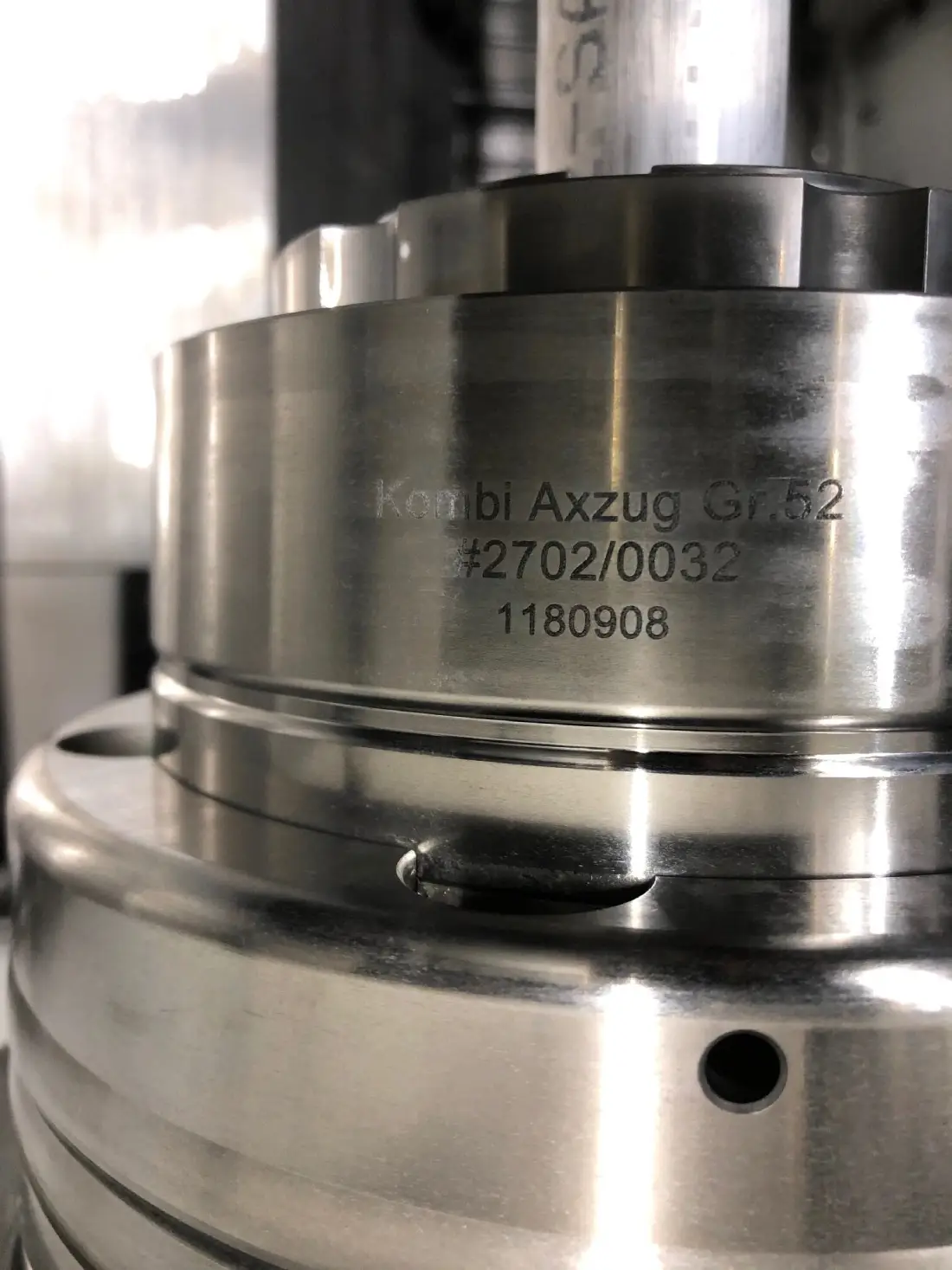

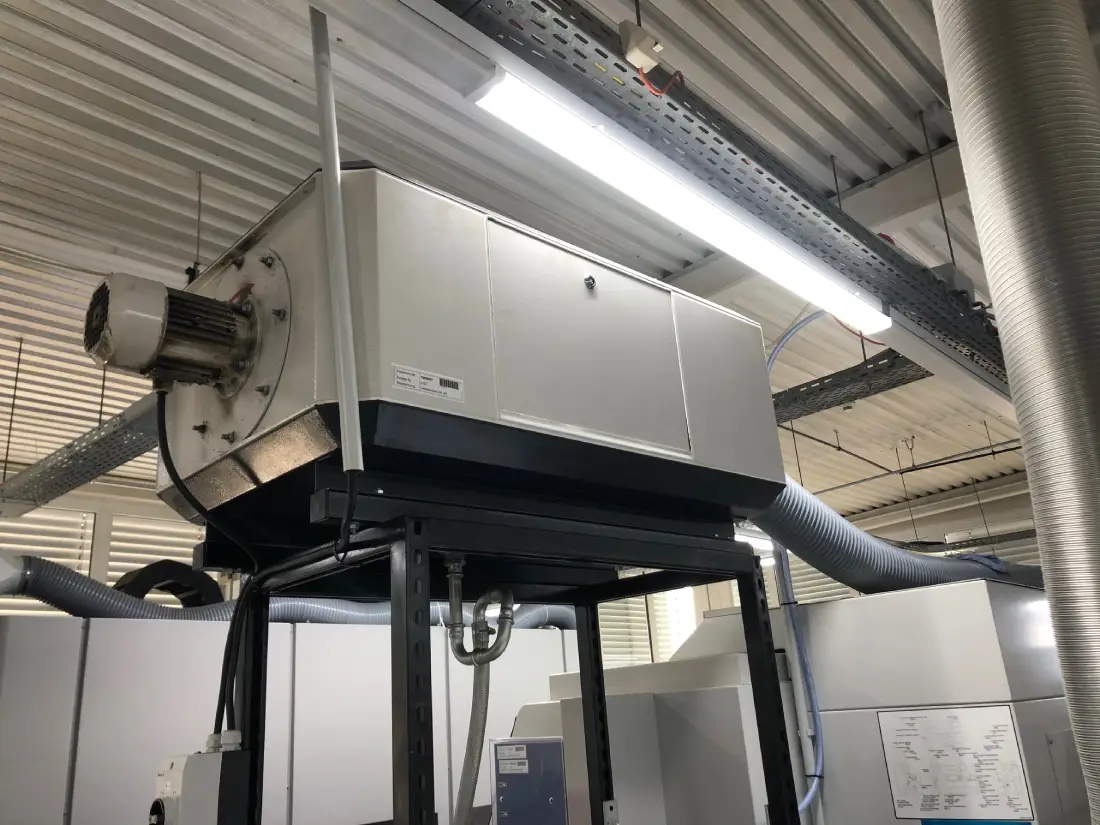

This Mazak SQT 200 MSY is unusually completely equipped: coolant temperature control by Parker Hiross, oil mist extraction, a 20 bar high-pressure pump and Hainbuch collet chucks on both spindles.

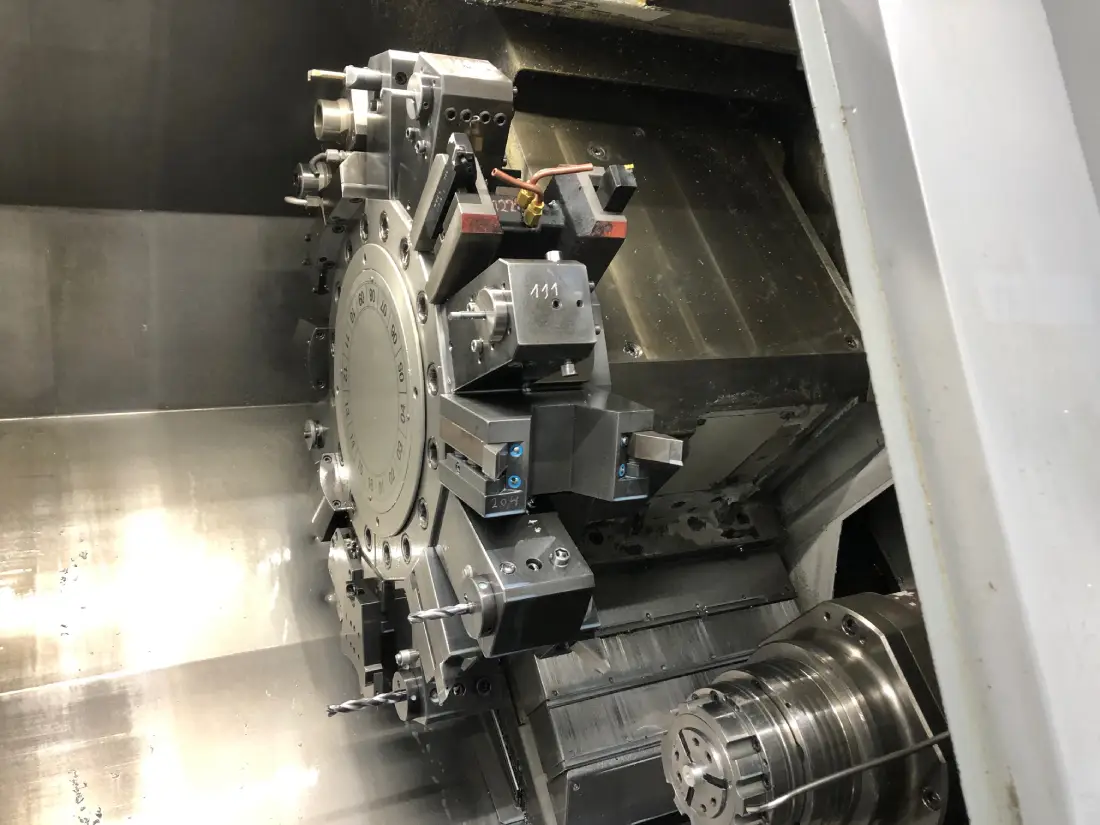

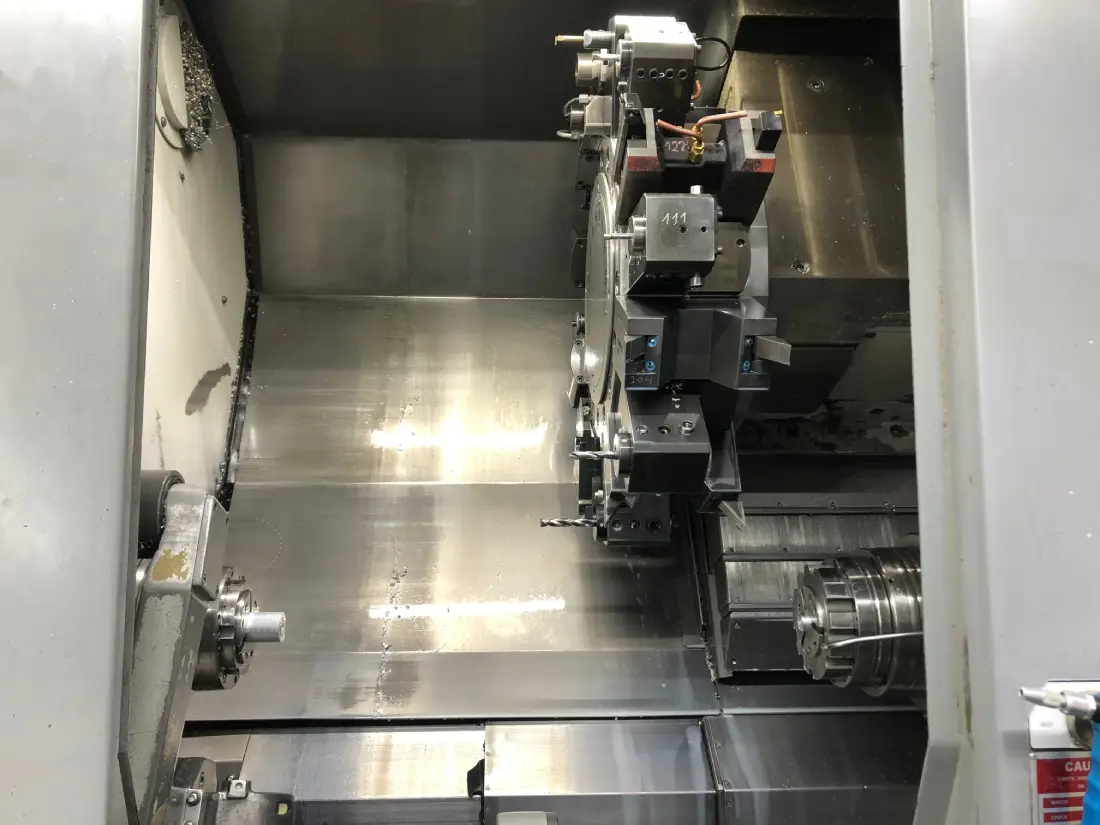

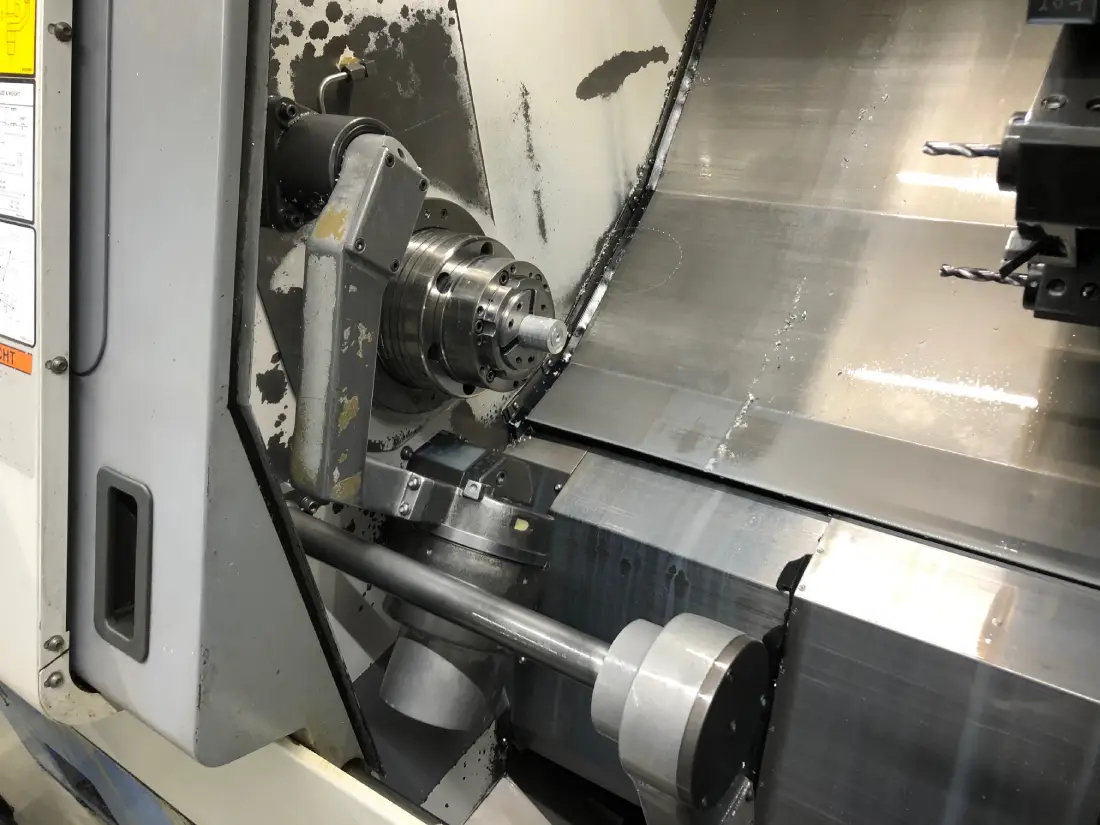

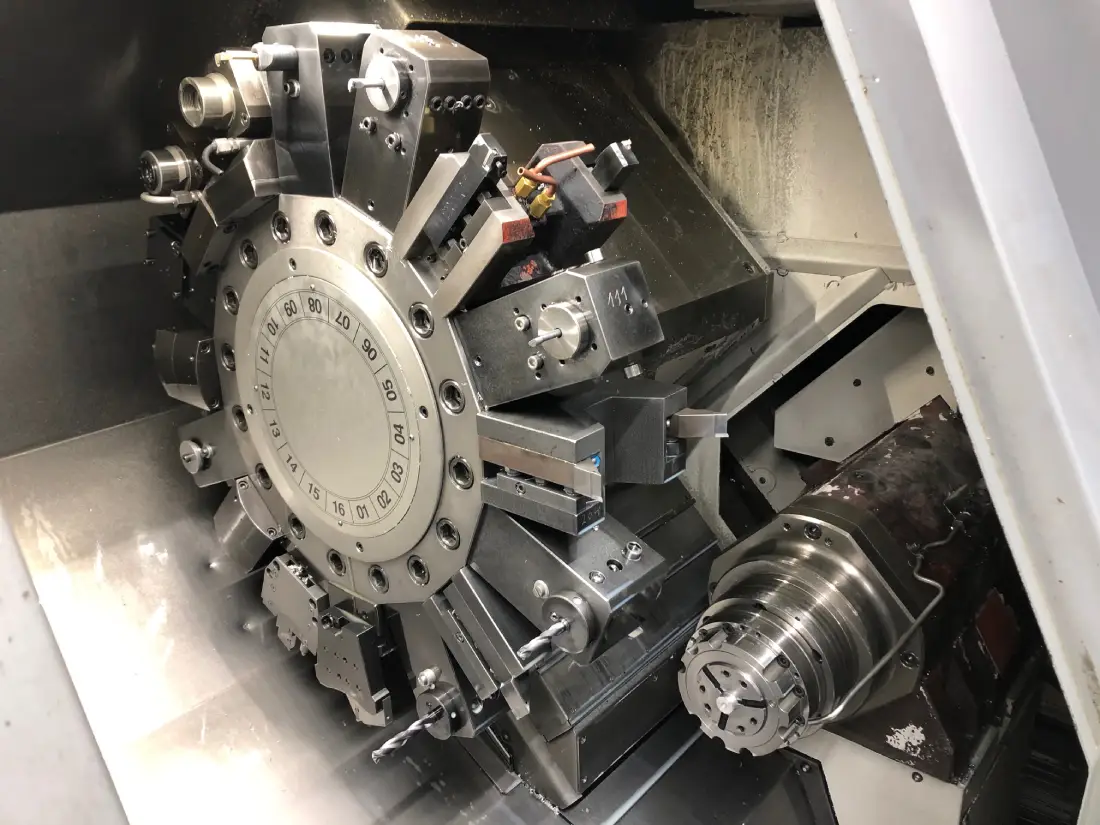

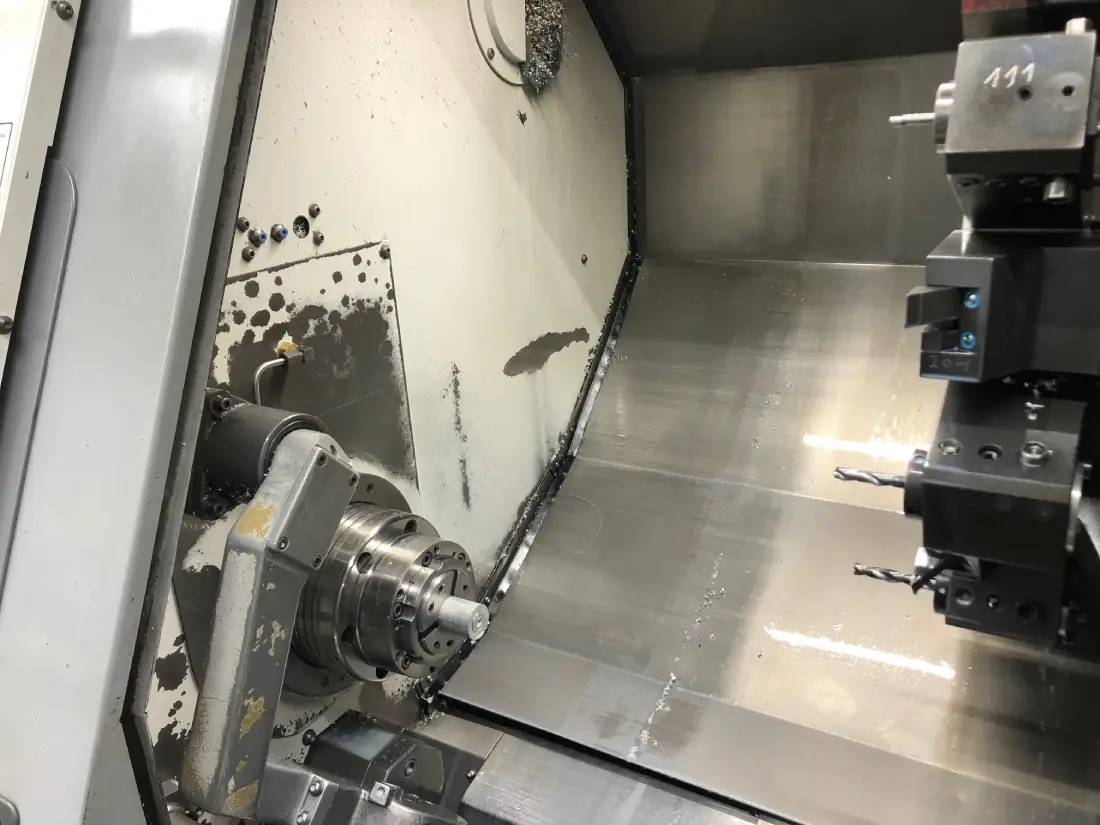

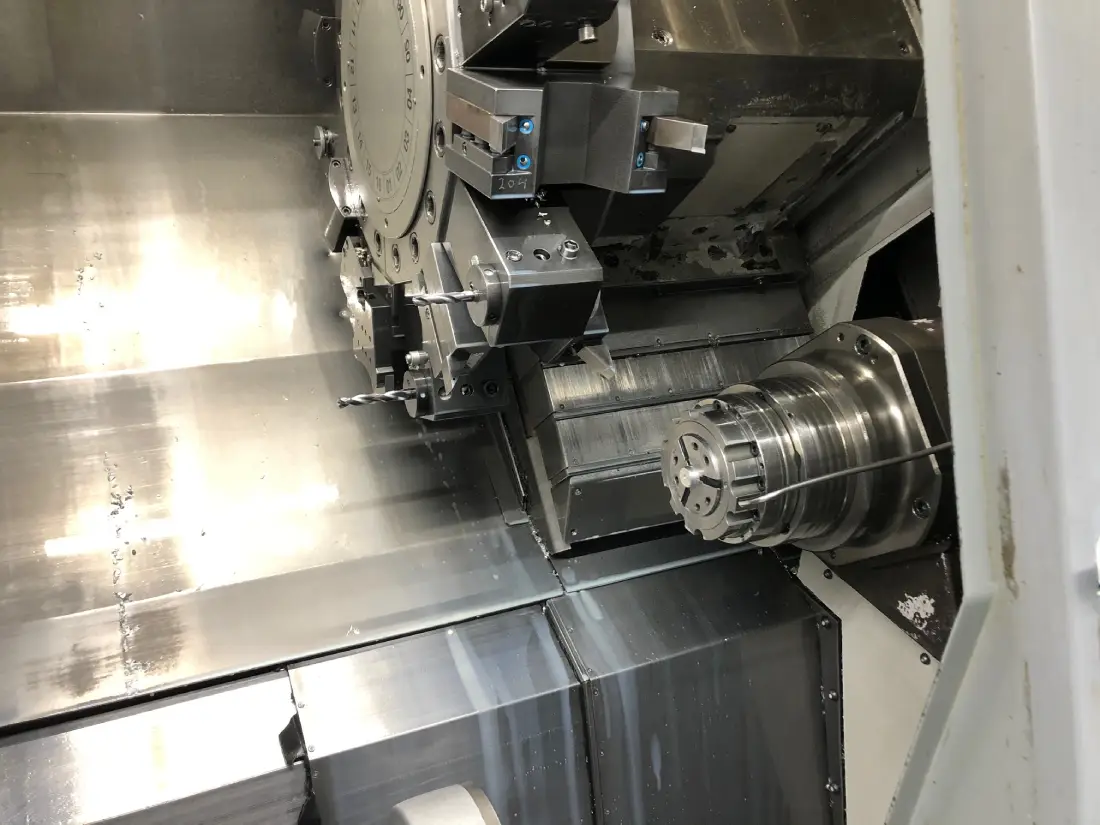

The SQT200MSY turns up to Ø 300 mm. The main spindle delivers 18.5 kW at 5,000 rpm on A2-6, the counter-spindle 7.5 kW. All 16 turret stations are driven and run up to 4,500 rpm.

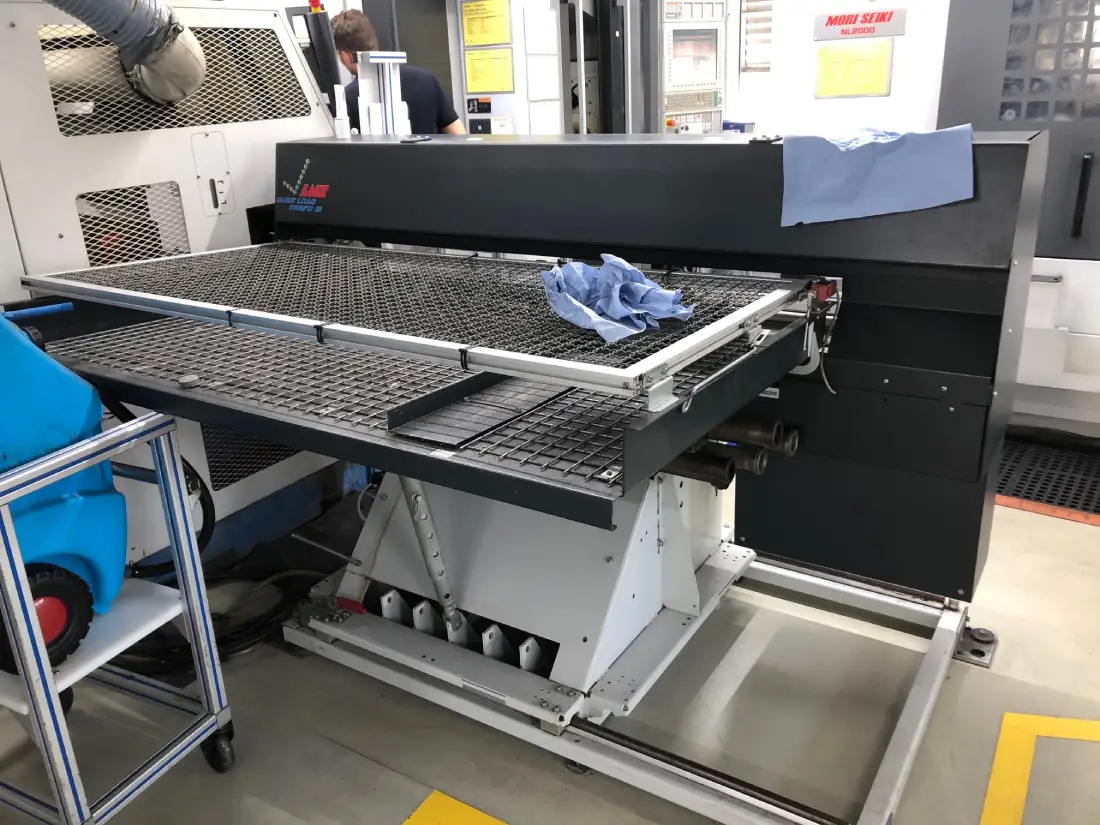

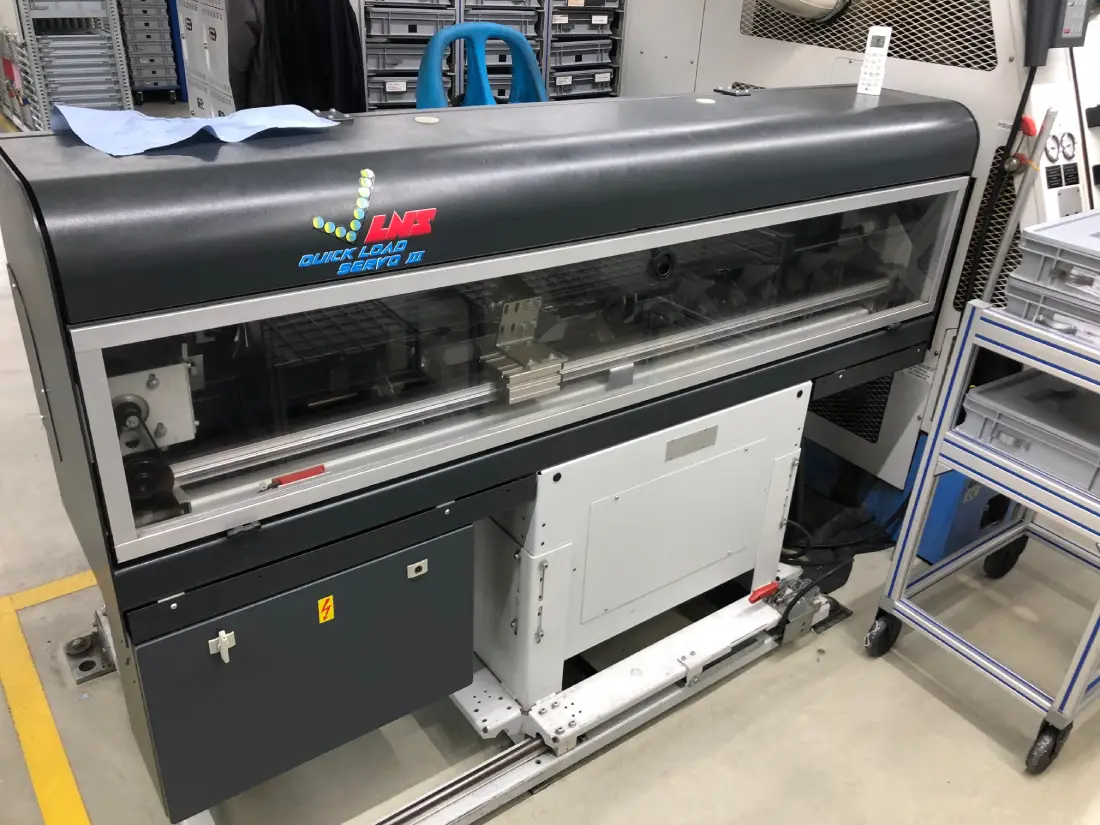

With 100 mm of Y travel and a counter-spindle, finished parts come off in a single pass; an LNS Quick Load Servo III feeds the machine with bar stock.
Year of manufacture 2003, Mazatrol PC Fusion 640 T control. Available immediately, price on request. Inspected before handover — transport, installation and financing as required.
Travels
▼
X-axis
180 mm
Y-axis
100 mm
Z-axis
575 mm
B-axis
585 mm
Max. turning diameter
▼
Main spindle
▼
Counter-spindle
▼
Tool turret
▼
Additional features
▼
