MAZAK VARIAXIS i-800 + VC Primos 400L

For sale is a production cell consisting of:

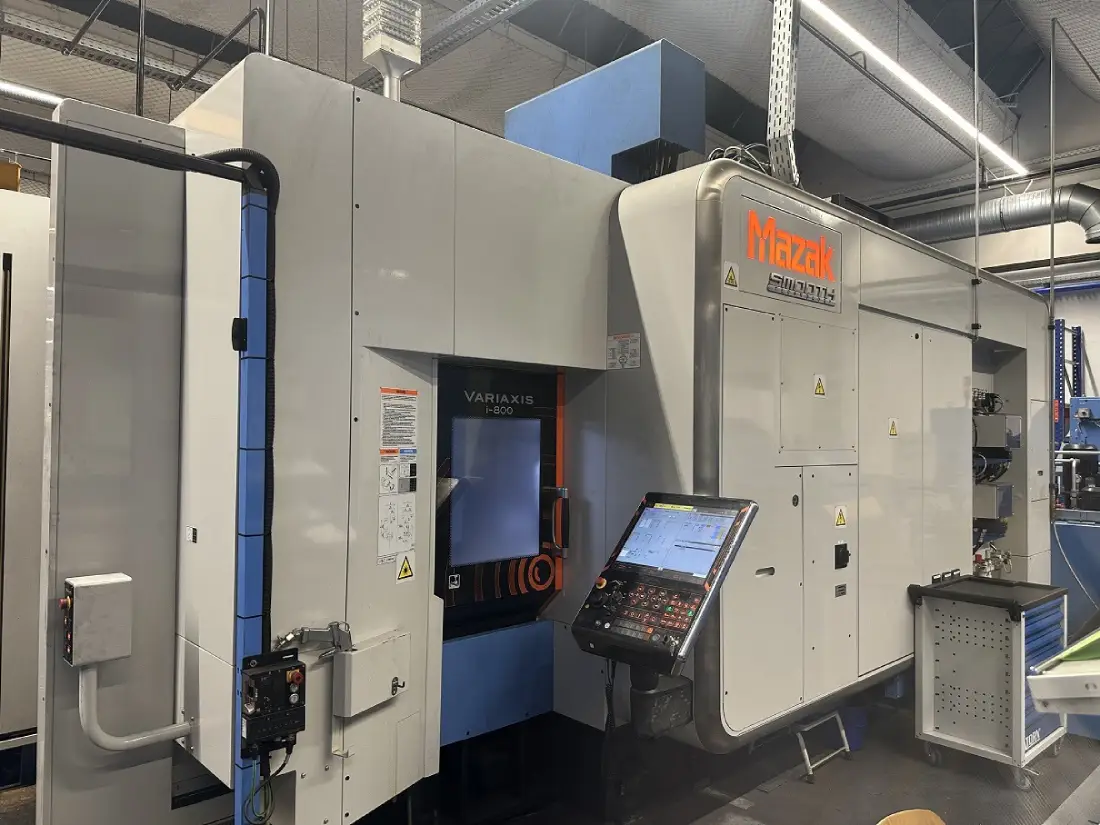

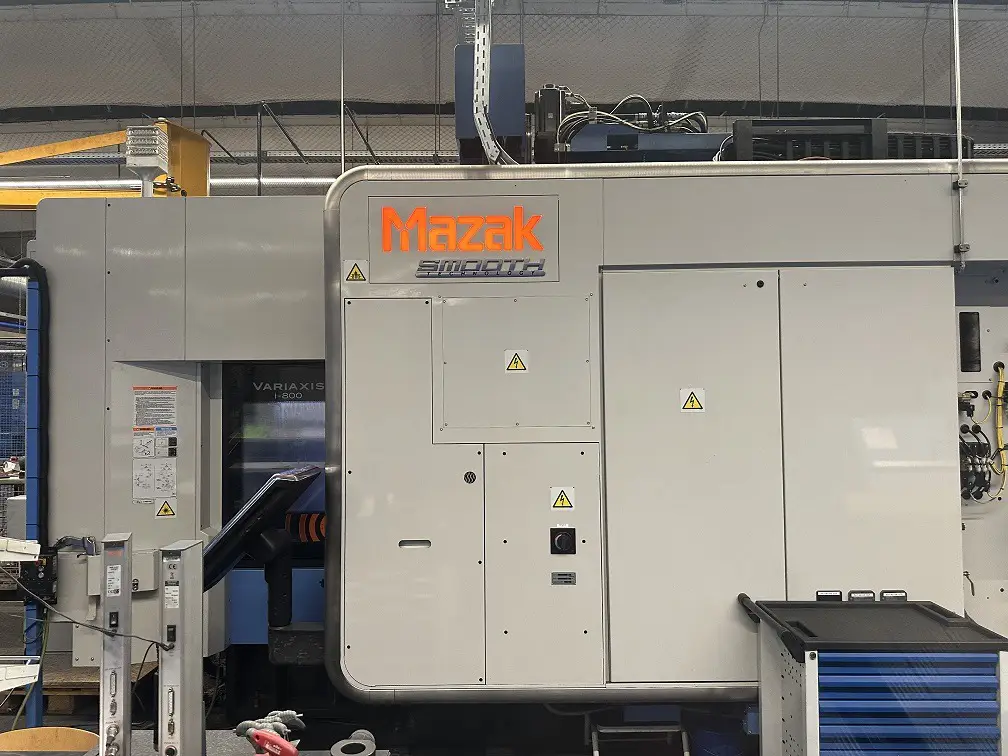

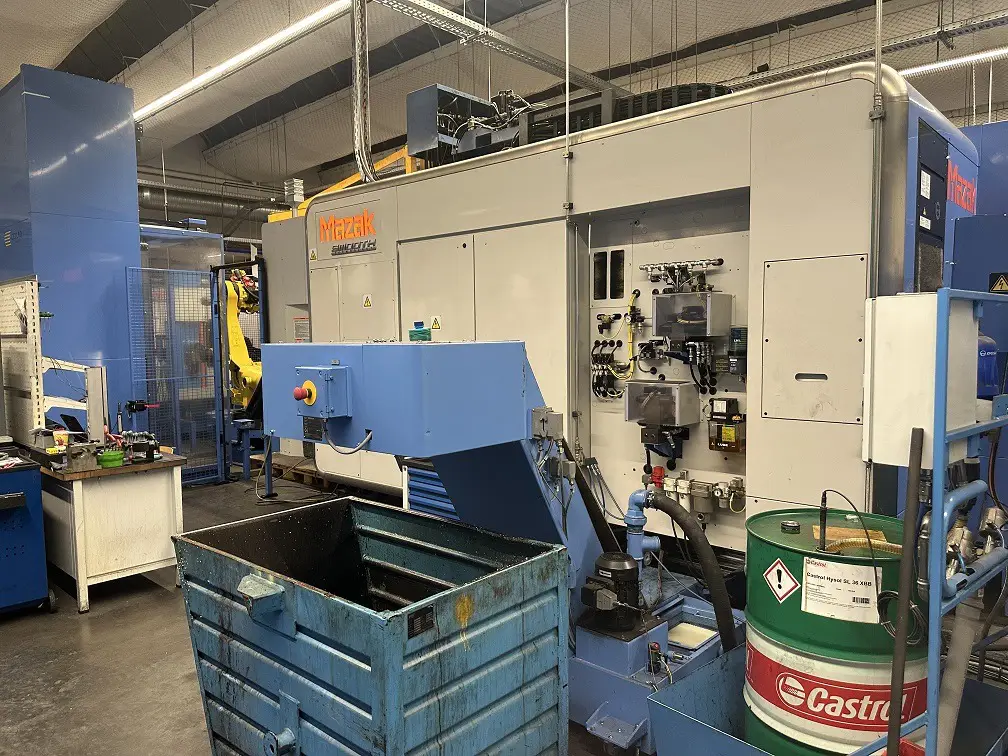

• 1 x MAZAK VARIAXIS i-800

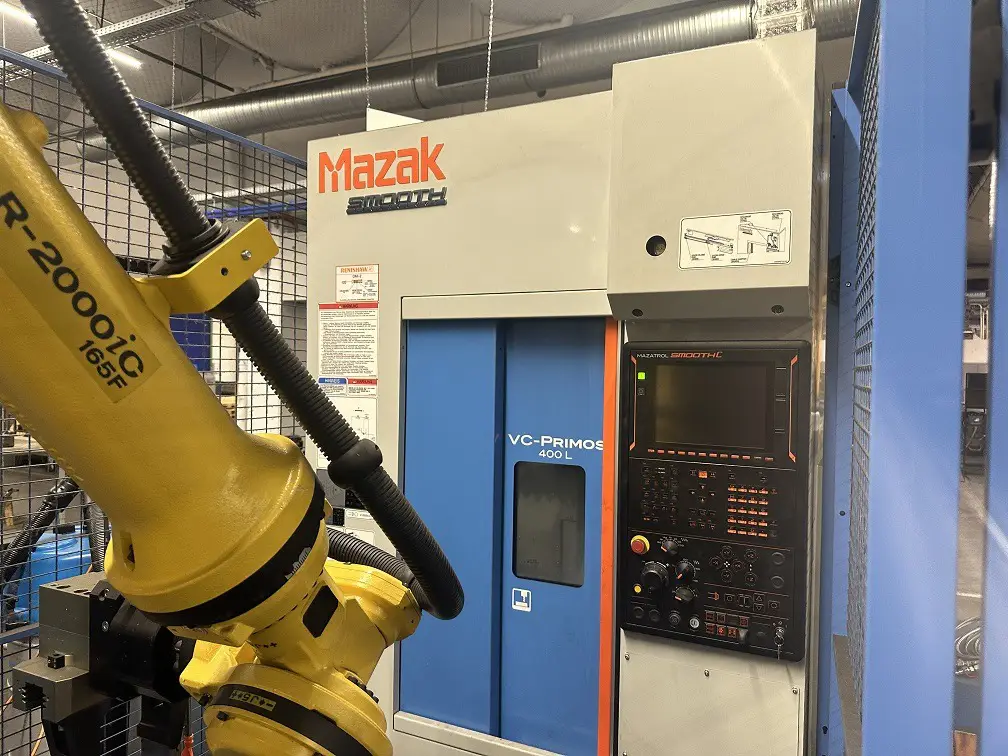

• 1 x MAZAK VC PRIMOS 400 L

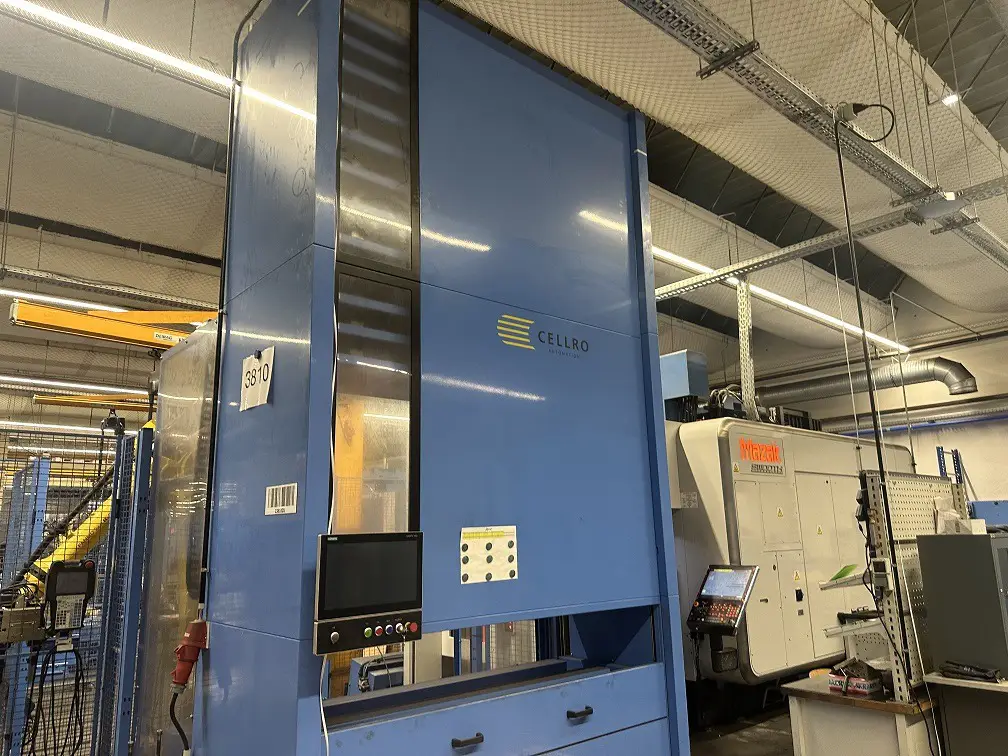

• 1 x CELLRO ELEVATE with FANUC R-2000-165 Robot

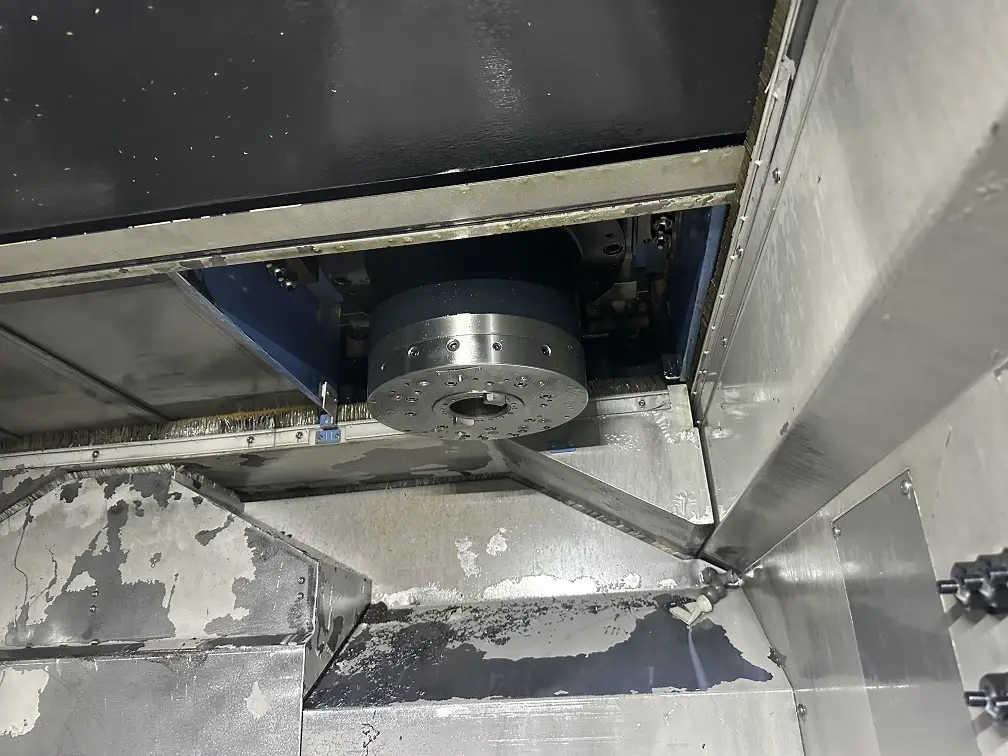

• 5-Axis Machining Center
• Smooth X-Control

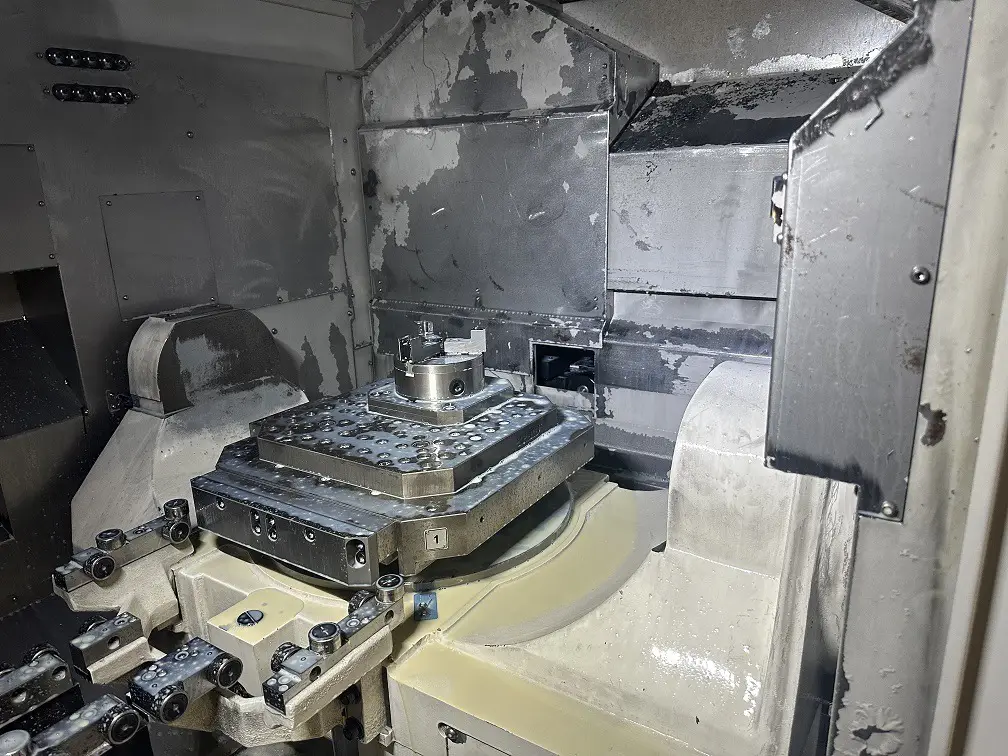

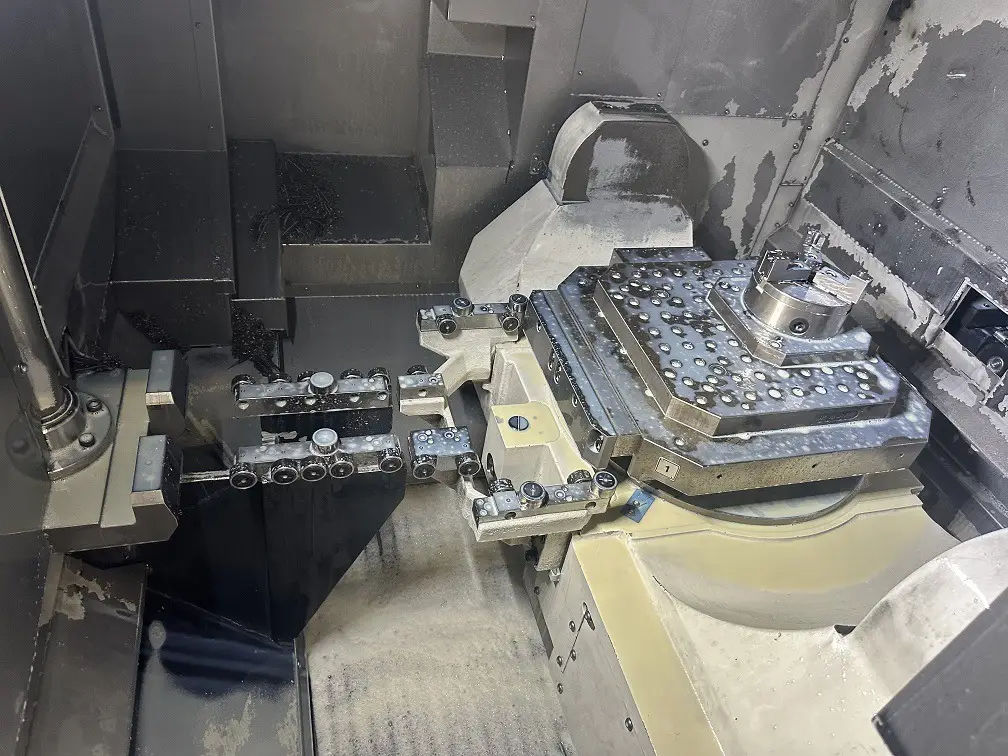

• Pallet Changer, 2 Pallets
• 5-Axis Simultaneous Machining
• Travels:
  X-Axis: 730 mm
  Y-Axis: 800 mm
  Z-Axis: 560 mmA-Axis: -120° to +30°

  C-Axis: ±360°

• Rapid Traverse (X/Y/Z): 42 m/min
• Rapid Traverse (A/C): 50 rpm
• Max. Spindle speed 10,000 rpmSK-50 tool holder, DIN 69871

  -Tool magazine for 120 tools

  -Preparation for hydraulic clamping including pallet clamping function

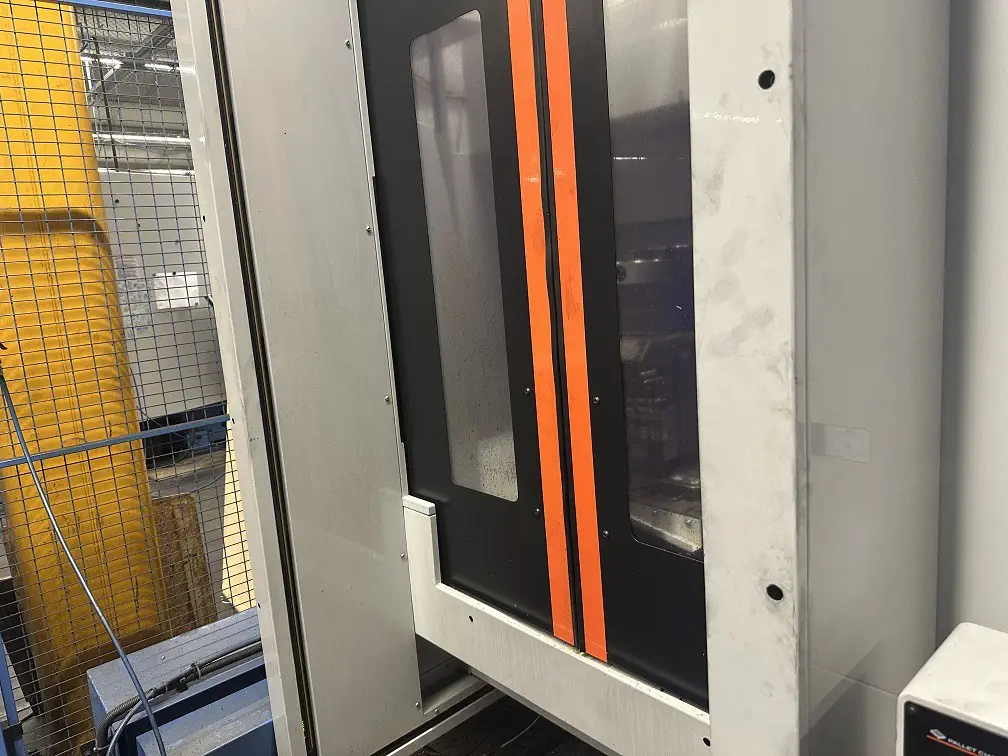

  -Automatic pallet changer
  -Electronic handwheel
  -Panel for Euchner Tool ID
  -Air flow through rotating spindle
  -Coolant gun

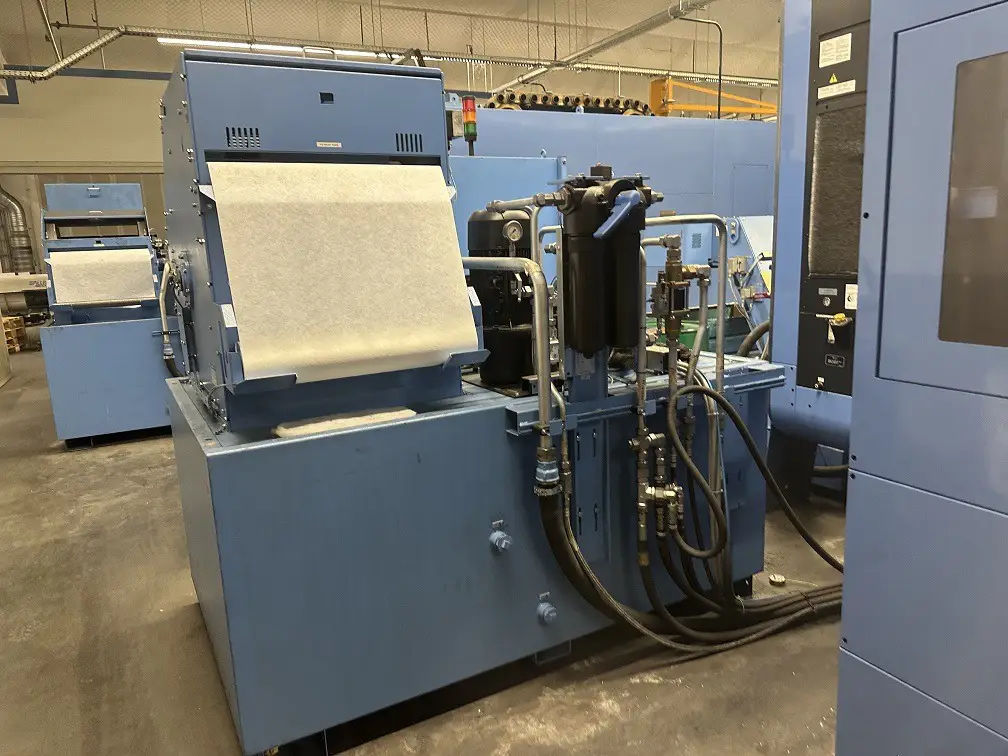

  -Knoll coolant system KF400/2300
  -Paper band filter
  -Preparation for 70 bar
  -High-pressure pump 70 bar
  -Knoll chip conveyor
  -Renishaw NC4 laser
  -Air blow-off at the NC4 laser
  -Mazak Monitoring B, including Renishaw RMP600 probe
  -Tool breakage monitoring (TBR) & Mazak Monitoring System (MMS) EIA/ISO Program – Macro

  -Automatic workpiece coolant flushing at the pallet changer

  -Workpiece zero point shift under EIA/ISO

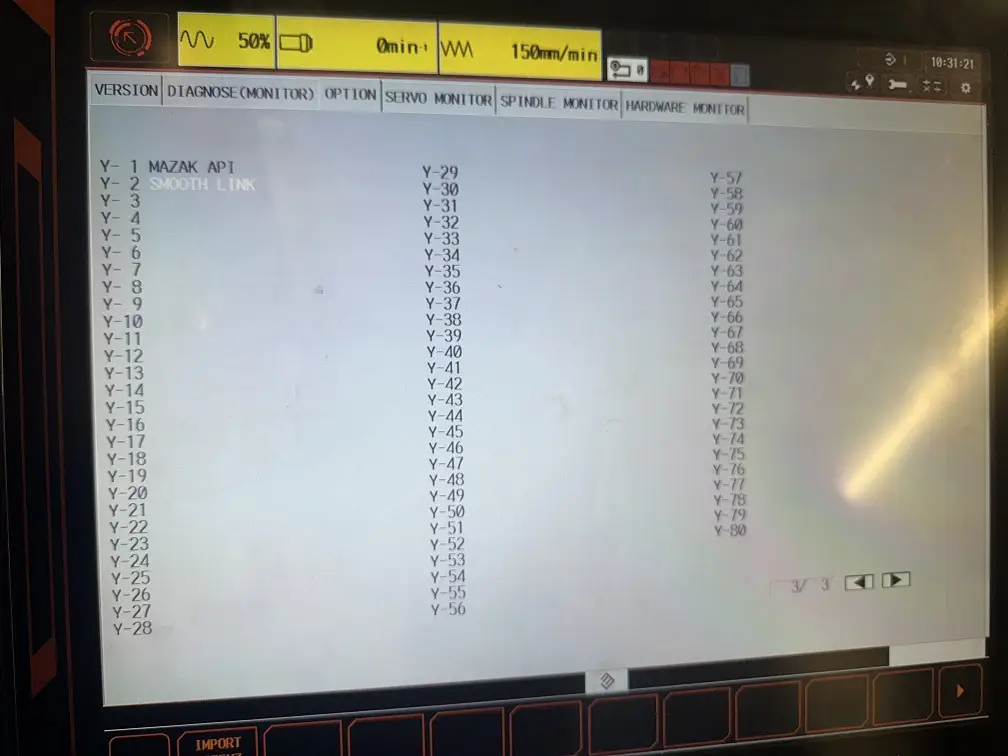

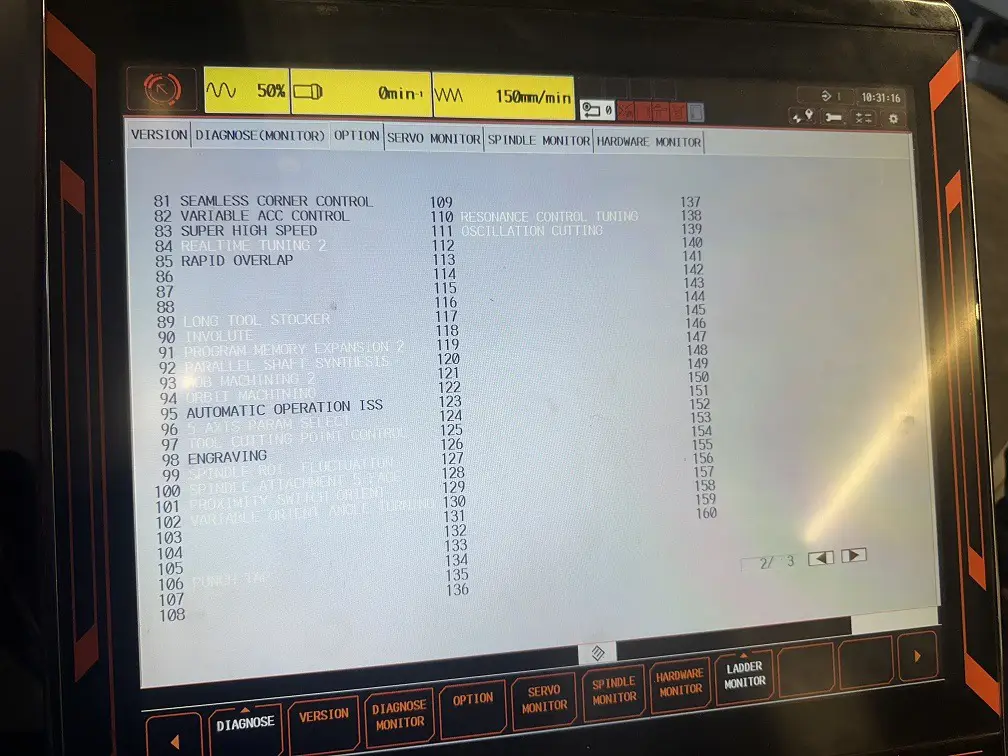

  -Mazak API

  -Smoothly synchronized thread cutting

  -Drilling cycle with torque-dependent chip breaking

  -Engraving function

  Maximum program size: 8 MB

  -Rapid traverse with constant tilt angle

  -Robot interface (Advance/Profibus)

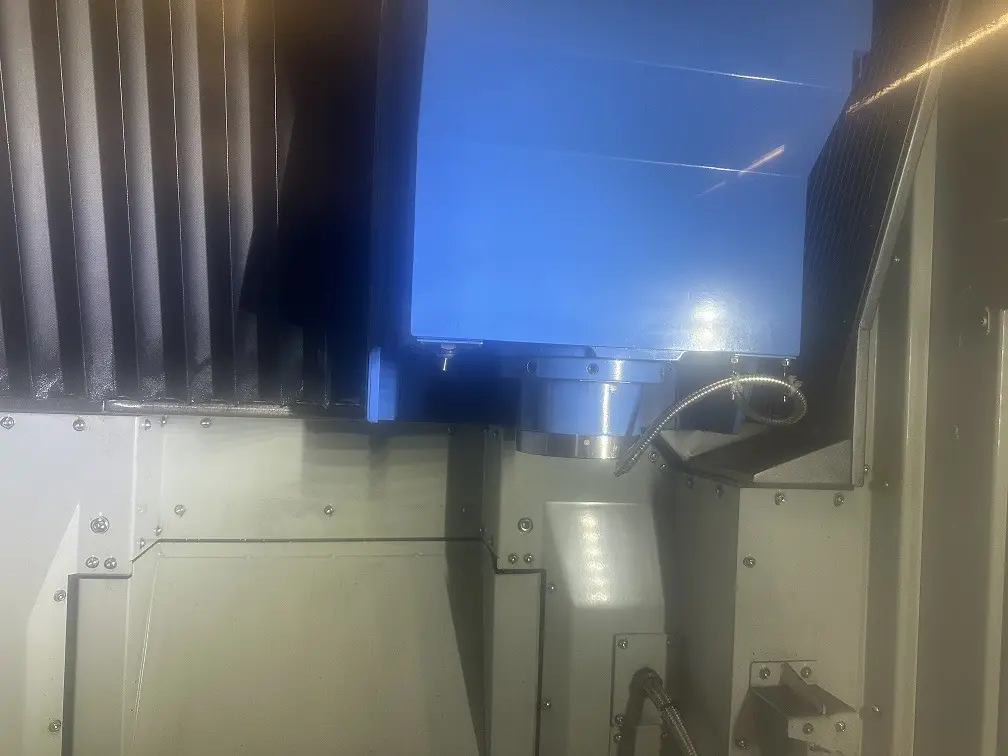

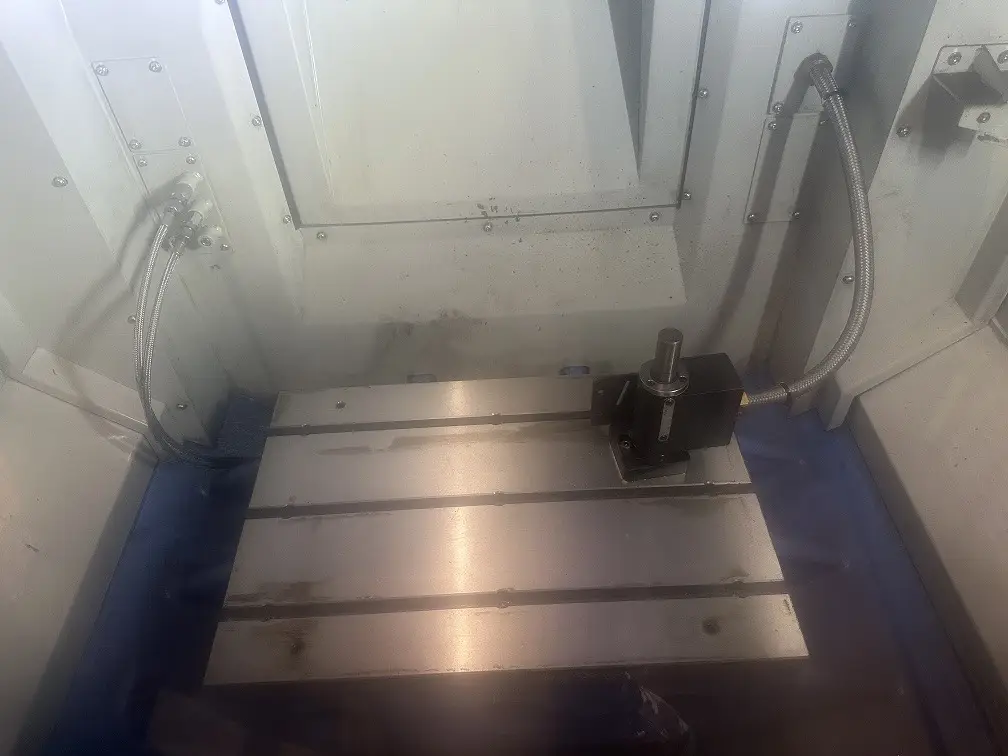

• Vertical Machining Center
• Year of manufacture 2020, installed 2021

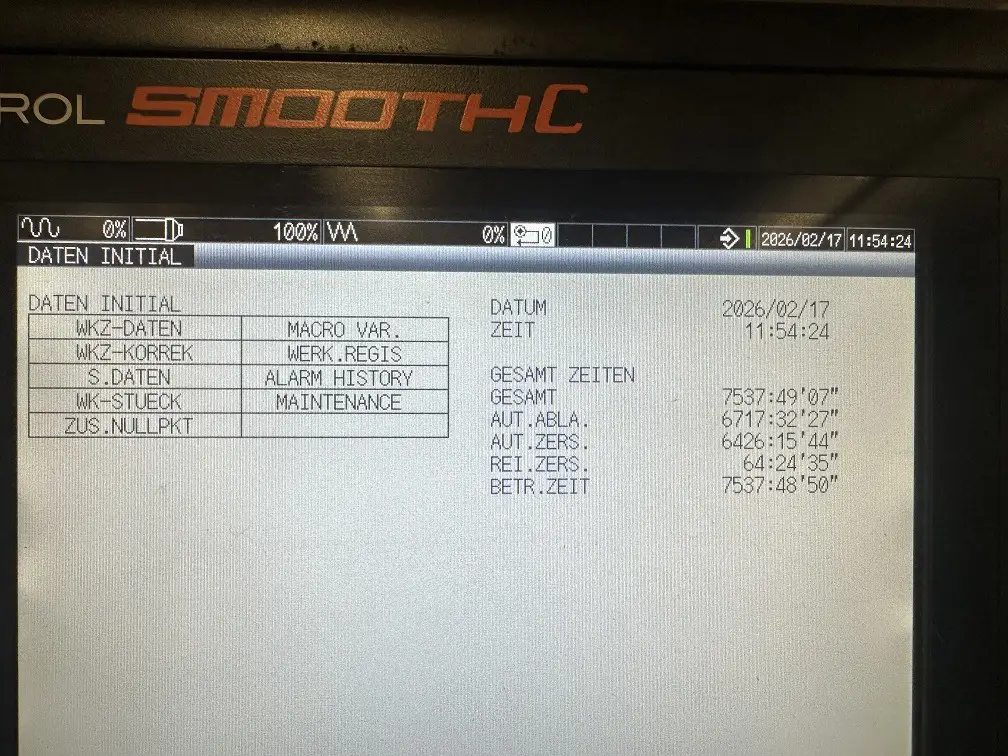

  Mazatrol Smooth C
• Travels
  X: 500 mm
  Y: 400 mm
  Z: 350 mm
• Table size: 600 x 400 mm
• Max. table load: 300 kg
• Milling spindle AC 11 kW
• Max. Spindle speed: 12,000 rpm14 tools, BT30

  -2 hydraulic connections

  -Automatic door
  -Oil mist lubrication
  -Signal light
  -Airflow through rotating spindle
  -Mazak Monitoring B, including Renishaw OMP40 probe
  -Synchronized tapping
  -Drilling cycle with torque-dependent chip breaking
  -Rapid traverse with constant tilt angle
  -Robot interface (Advance/Profibus)

  -Profibus DP

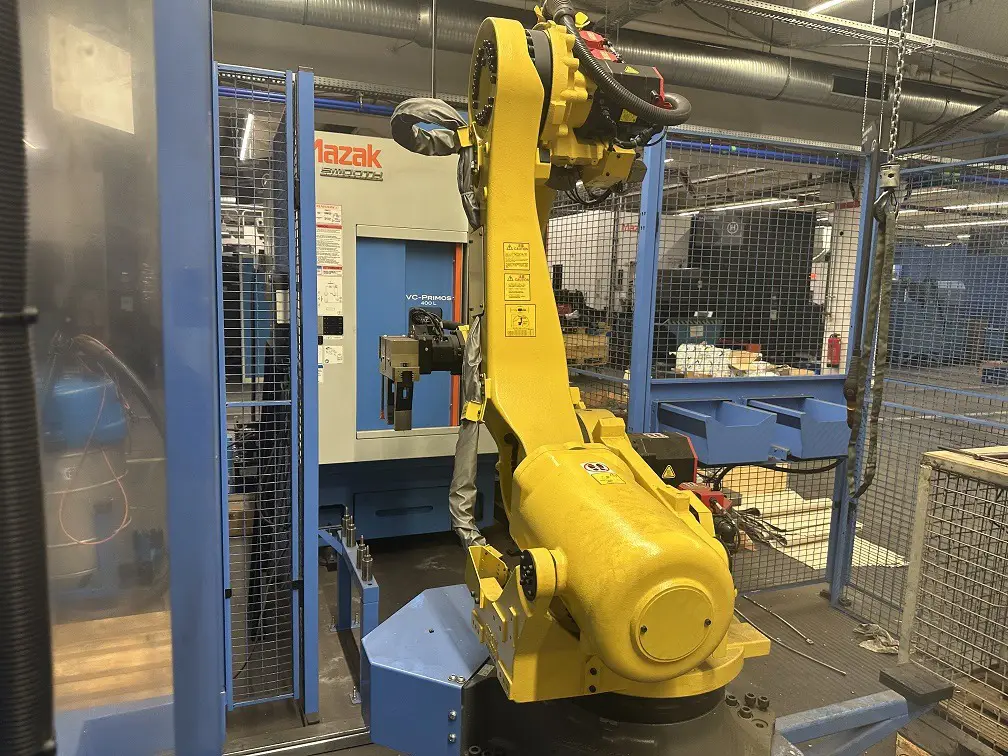

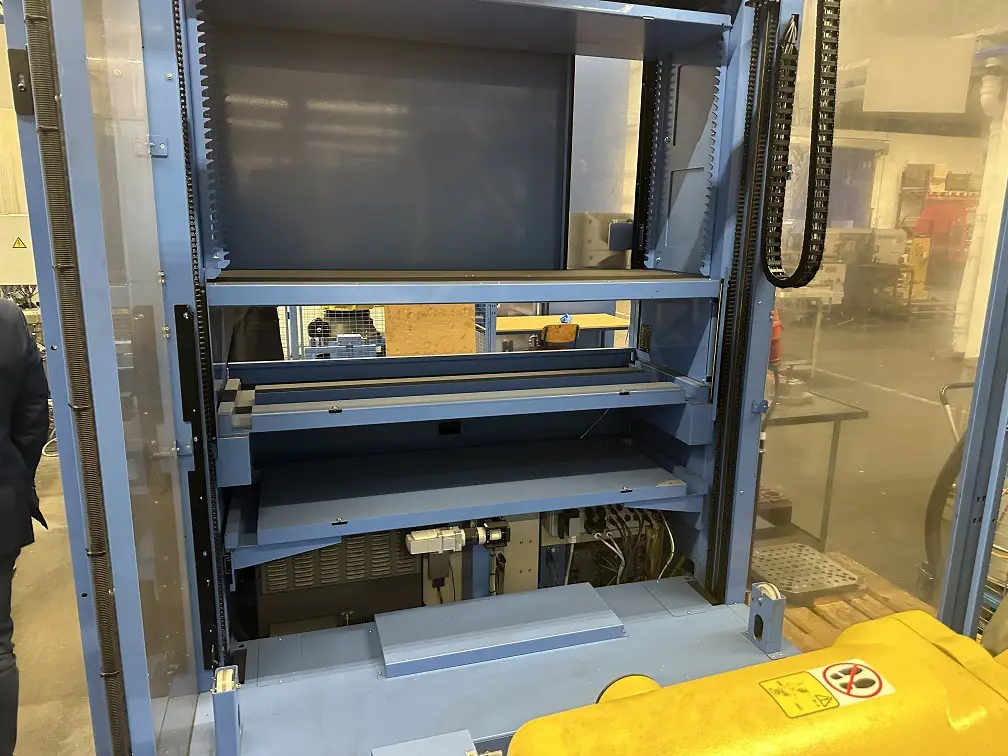

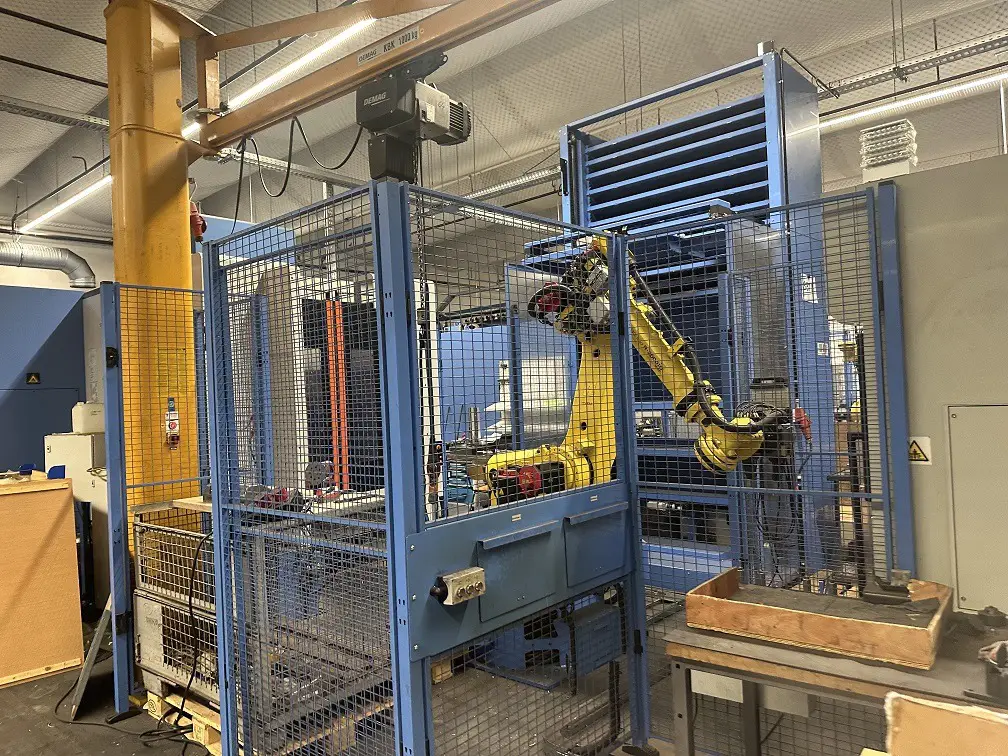

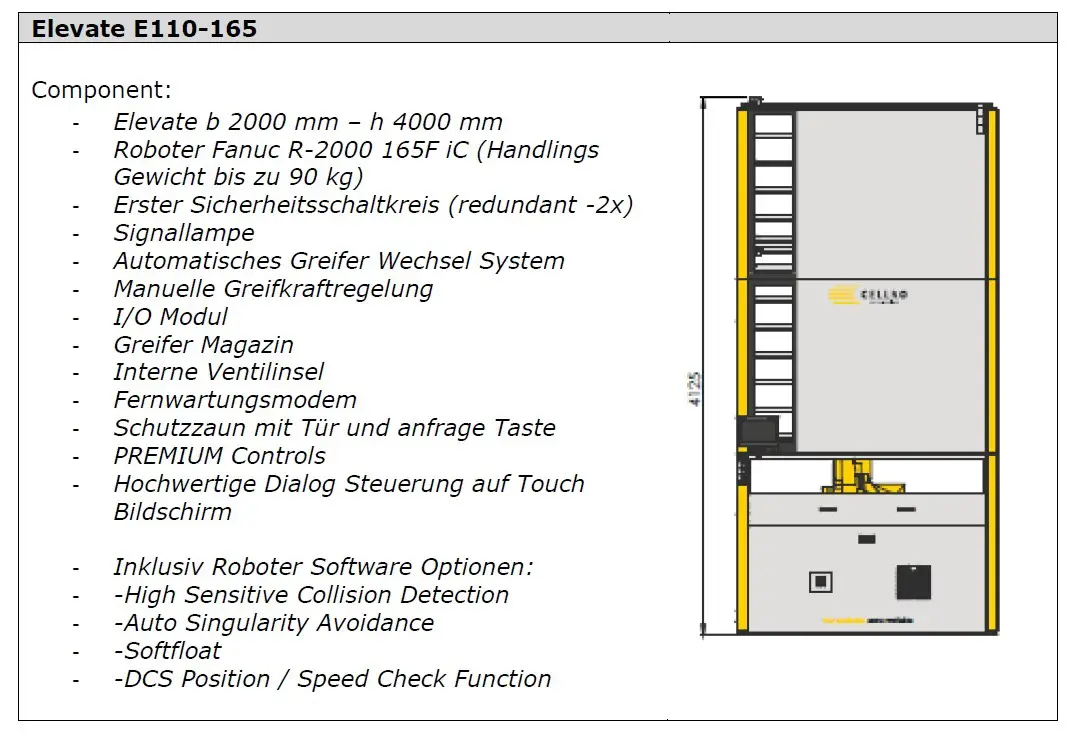

• Robot cell with parts storage
• Elevate B 2000 mm – H 4000 mm

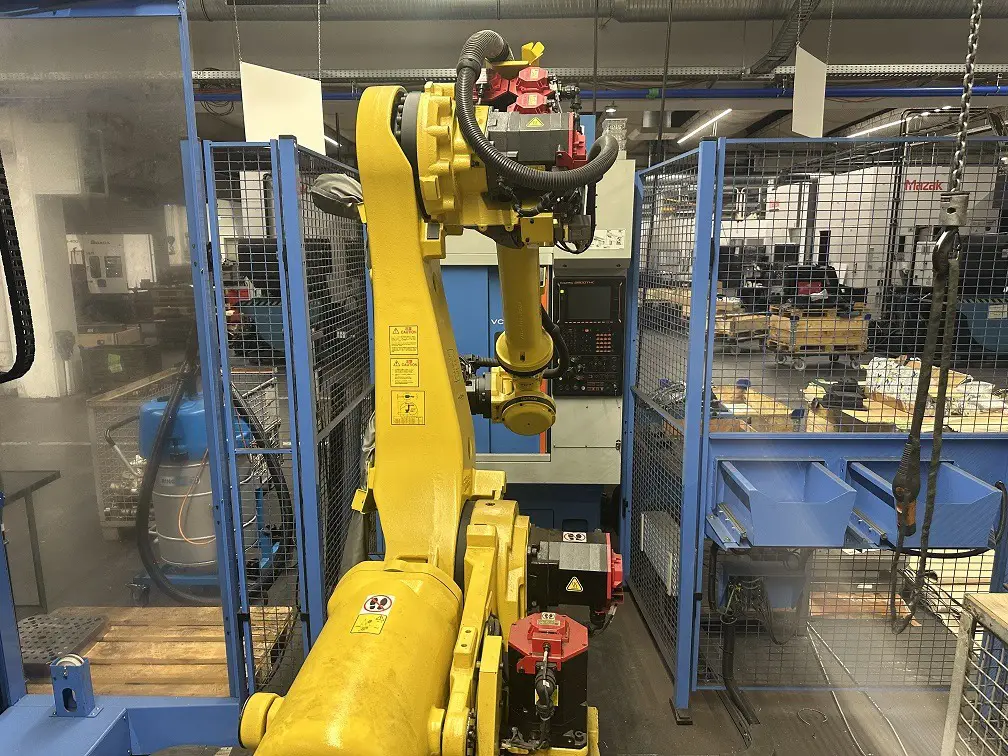

• Fanuc robot R-2000 165F iC
• Fanuc robot max. payload: 165 kg
• max. Handling weight: 90 kgAutomatic gripper change system
• Manual gripping force control
• I/O module gripper magazine
• Internal valve manifold
• Modem for remote maintenance
• Safety fence with gate and request button
• PREMIUM controls
• High-quality dialog control via touchscreen
• Including robot software options:
• High-sensitivity collision detection
• Auto singularity avoidance
• Soft float
• DCS position/speed check function
• Workpiece rotation station
• Workpiece measuring station with SPC trays for measuring parts during the process
• Air blow-off station
• Various trays (1600) x 550 mm
• Loading with extendable tray interface for 2 Variaxis i-800s and one VCP400L
